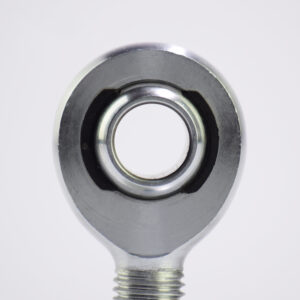

MXM MXF Metric Rod Ends M5 M8 M10 M12 M16 M48

Name: MXM MXF Metric Rod Ends M5 M8 M10 M12 M16 M48
Brand: SYZ Rod Ends
Availability: InStock

✓ ISO 9001 Certified

✓ SGS Verified

✓ 26+ Years Factory

✓ OEM / ODM Ready

Type: Male/FemaleThread: Right/LeftRegular Size: Male and Female Type from MXMR5-MXMR50 and MXFR5-MXFR30Inch Size and Metric Size Both AvailableCustom Option: Material/Size/Stud Configurations

Get a Quote →

⚡ Typically responds within 24 hours

MOQ:50 pcs / model

Lead Time:7–15 days

Sample:Free (excl. freight)

Payment:T/T · PayPal · L/C

Overview

MXM MXF Metric Rod Ends M5 M8 M10 M12 M16 M48 Overview

Item: MXM MXF Metric Rod Ends M5 M8 M10 M12 M16 M48

BALL	RACE	BODY
52100 BEARING STEEL	INJECTION	4130 CHROMOLY STEEL
PRECISION GROUND	MOLDED	HEAT TREATED
HEAT TREATED	REINFORCED	HARD CHROME PLATED
HARD CHROME PLATED	NYLON with PTFE

Type: Male/Female
Thread: Right/Left
Regular Size: Male and Female Type from MXMR5-MXMR50 and MXFR5-MXFR30
Inch Size and Metric Size Both Available
Custom Option: Material/Size/Stud Configurations

most popular rod end

MXM MXF metric rod end

MXM and MXF Metric Rod End Size Chart

Dimension in MM

MXM ROD END		B	D	W	T	AM	N	CM	a°	STATIC	APPROX
RIGHT	LEFT	DIA.	DIA.	WIDTH	WIDTH	LENGTH	THREAD	LENGTH	MIS.	RADIAL	WEIGHT
HAND	HAND	0.065	0.038	0.12	REF.	0.4	METRIC	1	ANGLE	LOAD	(GRAMS)
PART NO.	PART NO.	-0.012	-0.038	-0.12		-0.4	MALE	-1	REF.	KN
MXMR5	MXML5	5	18	8	6	33	M5 X 0.8	19	24	7.8
MXMR6	MXML6	6	20	9	6.75	36	M6 X 1.0	21	24	11.2	20
MXMR8	MXML8	8	24	12	9	42	M8 X 1.25	25	26	19.5	30
MXMR10	MXML10	10	28	14	10.5	48	M10 X 1.5	28	24	31.7	60
MXMR10X1.25	MXML10X1.25	10	28	14	10.5	48	M10 X 1.25	28	24	31.7	60
MXMR12	MXML12	12	32	16	12	54	M12 X 1.75	32	24	48.8	80
MXMR12X1.25	MXML12X1.25	12	32	16	12	54	M12 X 1.25	32	24	48.8	80
MXMR12X1.5	MXML12X1.5	12	32	16	12	54	M12 X 1.5	32	24	48.8	80
MXMR14	MXML14	14	36	19	13.5	60	M14 X 2.0	36	30	65.8	129
MXMR14X1.5	MXML14X1.5	14	36	19	13.5	60	M14 X 1.5	36	30	65.8	129
MXMR16	MXML16	16	42	21	15	66	M16 X 2.0	37	28	80	200
MXMR16X1.5	MXML16X1.5	16	42	21	15	66	M16 X 1.5	37	28	80	200
MXMR18	MXML18	18	46	23	16.5	72	M18 X 1.5	41	32	95	280
MXMR20	MXML20	20	50	25	18	78	M20 X 1.5	45	26	107	340
MXMR22	MXML22	22	54	28	20	84	M22 X 1.5	48	28	143	280
MXMR25	MXML20	25	60	31	22	94	M24 X 2.0	55	28	153	340
MXMR30	MXML20	30	70	37	25	110	M30 X 2.0	66	32	195	340
MXMR35	MXML35	35	80	43	28	140	M36 x 2.00	85	32
MXMR40	MXML40	40	90	49	33	150	M42 x 2.00	90	34
MXMR50	MXML50	50	116	60	45	185	M48 x 2.00	105	24

MXF ROD END		B	D	W	T	AF	N	CF	a°	STATIC	APPROX
MXFR5	MXFL5	5	18	8	6	27	M5 X 0.8	8	24	19.5
MXFR6	MXFL6	6	20	9	6.75	30	M6 X 1.0	9	24	21.2	20
MXFR8	MXFL8	8	24	12	9	36	M8 X 1.25	12	26	29.2	30
MXFR10	MXFL10	10	28	14	10.5	43	M10 X 1.5	15	24	48.8	60
MXFR10X1.25	MXFL10X1.25	10	28	14	10.5	43	M10 X 1.25	15	24	48.8	60
MXFR12	MXFL12	12	32	16	12	50	M12 X 1.75	18	24	58.5	80
MXFR12X1.25	MXFL12X1.25	12	32	16	12	50	M12 X 1.25	18	24	58.5	80
MXFR12X1.5	MXFL12X1.5	12	32	16	12	50	M12 X 1.5	18	24	58.5	80
MXFR14	MXFL14	14	36	19	13.5	57	M14 X 2.0	21	30	68.3	129
MXFR14X1.5	MXFL14X1.5	14	36	19	13.5	57	M14 X 1.5	21	30	68.3	129
MXFR16	MXFL16	16	42	21	15	64	M16 X 2.0	24	28	80	200
MXFR16X1.5	MXFL16X1.5	16	42	21	15	64	M16 X 1.5	24	28	80	200
MXFR18	MXFL18	18	46	23	16.5	71	M18 X 1.5	27	32	95	280
MXFR20	MXFL20	20	50	25	18	77	M20 X 1.5	30	26	107	340
MXFR22	MXFL22	22	54	28	20	84	M22 X 1.5	33	28	143	280
MXFR25	MXFL25	25	60	31	22	94	M24 X 2.0	36	28	153	340
MXFR30	MXFL30	30	70	37	25	110	M30 X 2.0	45	32	195	340

Custom Service Process:Select Similar Product — Confirm MOQ — Send Inquiry — Send your Drawings or Samples — Customization
Select product (If your product is not on our website, select a similar product) — Confirm the quantity you need meet up with our MOQ — Send inquiry with your Drawings or Samples — We will reply to you and confirm details — Send details to our factory and start customization

Hot Selling Products

Quality Control

Every Unit Inspected Before Shipment

🔩

Raw Material Inspection

Material certifications verified before machining and assembly begin.

🔍

Dimensional Check

Critical dimensions are checked against drawing or sample requirements.

🔬

Surface Inspection

Visual inspection confirms finish quality, burr removal, and assembly cleanliness.

📋

Batch Documentation

Inspection reports and production traceability can be provided on request.

Applications

Where Rod End / Heim Joint Products Are Used

Steering and Suspension Linkages

Linkage rods and Heim-joint assemblies provide adjustable, serviceable connections for steering, suspension, and chassis systems. Match the joint type, thread, spacers, and alignment to the travel of the mechanism.

Motorsport and Off-Road Fabrication

These components are widely used in custom vehicle builds where geometry, length adjustment, and replaceable joints are important. Check shock loading, misalignment, fastener orientation, and maintenance access.

Industrial and Agricultural Controls

Rod-end linkages can connect levers, actuators, and control arms in agricultural and industrial equipment. Select material, race, sealing, and surface treatment for the expected contamination and oscillation.
