ROD END / HEIM JOINT

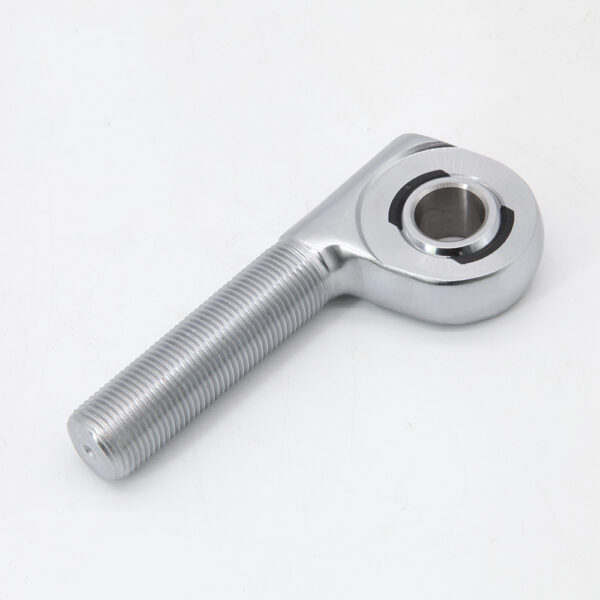

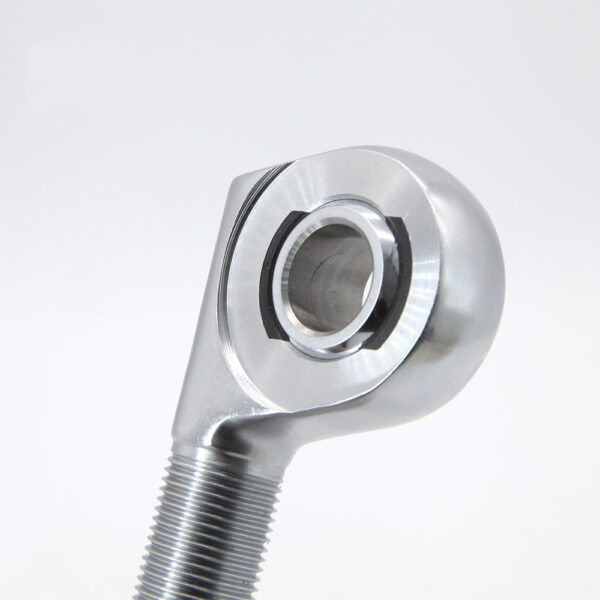

Offset Rod End Chromoly Joint

Name: Offset Rod End Chromoly Joint
Brand: SYZ Rod Ends
Availability: InStock

✓ ISO 9001 Certified

✓ SGS Verified

✓ 26+ Years Factory

✓ OEM / ODM Ready

Loader Slot, Heavy Duty, Nylon Race, Self-Lubricating
Ball:52100 Bearing Steel, Precision Ground, Heat Treated, Hard Chrome Plated
Race: Injection Molded, Reinforced Nylon with PTFE
Body: Chromoly Steel, Heat Treated,, Hard Chrome Plated

Type: Male/Female
Thread: Right/Left
Metric Size Both Available
Custom Option: Material/Size/Stud Configurations

Get a Quote →

⚡ Typically responds within 24 hours

MOQ:50 pcs / model

Lead Time:7–15 days

Sample:Free (excl. freight)

Payment:T/T · PayPal · L/C

Overview

Offset Rod End Chromoly Joint Overview

Item: Offset Rod Ends

Loader Slot, Heavy Duty, Nylon Race, Self-Lubricating
Ball: 52100 Bearing Steel,Precision Ground,Heat Treated,Hard Chrome Plated
Race: Injection Molded, Reinforced Nylon with PTFE
Body: Chromoly Steel, Heat Treated,, Hard Chrome Plated

Type:Male/Female
Thread:Right/Left
Metric Size Both Available
Custom Option:Material/Size/Stud Configurations

Custom Service Process:Select Similar Product — Confirm MOQ — Send Inquiry — Send your Drawings or Samples — Customization
Select product (If your product is not on our website, select a similar product) — Confirm the quantity you need meet up with our MOQ — Send inquiry with your Drawings or Samples — We will reply to you and confrim details — Send details to our factory and start customization

Hot Selling Products

Quality Control

Every Unit Inspected Before Shipment

🔩

Raw Material Inspection

Material certifications verified before machining and assembly begin.

🔍

Dimensional Check

Critical dimensions are checked against drawing or sample requirements.

🔬

Surface Inspection

Visual inspection confirms finish quality, burr removal, and assembly cleanliness.

📋

Batch Documentation

Inspection reports and production traceability can be provided on request.

Applications

Where Rod End / Heim Joint Products Are Used

Steering and Suspension Linkages

Linkage rods and Heim-joint assemblies provide adjustable, serviceable connections for steering, suspension, and chassis systems. Match the joint type, thread, spacers, and alignment to the travel of the mechanism.

Motorsport and Off-Road Fabrication

These components are widely used in custom vehicle builds where geometry, length adjustment, and replaceable joints are important. Check shock loading, misalignment, fastener orientation, and maintenance access.

Industrial and Agricultural Controls

Rod-end linkages can connect levers, actuators, and control arms in agricultural and industrial equipment. Select material, race, sealing, and surface treatment for the expected contamination and oscillation.
