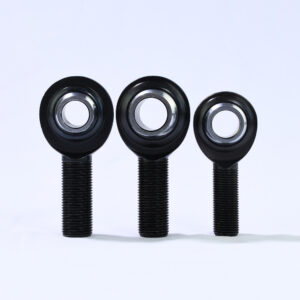

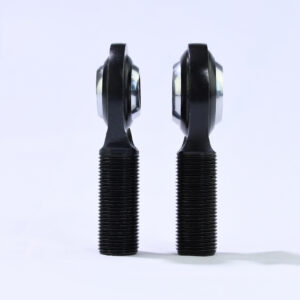

Oxide Coated PCM Heim Joint Chrome Moly Housing Spherical Rod Ends

Name: Oxide Coated PCM Heim Joint Chrome Moly Housing Spherical Rod Ends
Brand: SYZ Rod Ends
Availability: InStock

✓ ISO 9001 Certified

✓ SGS Verified

✓ 26+ Years Factory

✓ OEM / ODM Ready

2-Piece, 4130 Chromoly Steel, Black Oxide, Teflon Lined Ball: 52100 Bearing Steel, Precision Ground, Heat Treated, Hard Chrome Plated Body: 4130 Chromoly Steel, Heat Treated, Black Oxide Coated, PTFE Lined Optional Type: Male/Female Thread: Right/Left Regular Size: Male Type from PCM6T-PCM12T All Dimension in Inch Custom Option: Material/Size/Stud Configurations

Get a Quote →

⚡ Typically responds within 24 hours

MOQ:50 pcs / model

Lead Time:7–15 days

Sample:Free (excl. freight)

Payment:T/T · PayPal · L/C

Overview

Oxide Coated PCM Heim Joint Chrome Moly Housing Spherical Rod Ends Overview

Item: Oxide Coated Chrome Moly Housing Spherical Rod Ends

BALL		BODY
52100 BEARING STEEL	4130 CHROMOLY STEEL
PRECISION GROUND	HEAT TREATED
HEAT TREATED	BLACK OXIDE COATED
HARD CHROME PLATED	PTFE LINED OPTIONAL

Type:Male/Female
Thread:Right/Left
Regular Size: Male Type from PCM6T-PCM12T
All Dimension in Inch
Custom Option:Material/Size/Stud Configurations

pcm rod end

PCM Rod End Size Chart

PCM(-T) ROD END		B	D	W	T	AM	N	CM	a°	STATIC	APPROX
RIGHT	LEFT	DIA.	DIA.	WIDTH	REF.	LENGTH	THREAD	LENGTH	MIS.	RADIAL	WEIGHT
HAND	HAND	+0.0025	+0.010	+0.005		+0.015	UNF	+0.062	ANGLE	LOAD	(LBS)
PART NO.	PART NO.	-0.0005	-0.010	-0.005		-0.015	3A	-0.031	REF.	(LBS)
PCMR8(T)	PCML8(T)	0.5000	1.312	0.625	0.453	2.438	1/2-20	1.500	20	17,000	0.24
PCMR8-10(T)	PCML8-10(T)	0.5000	1.500	0.750	0.453	2.625	5/8-18	1.625	26	18,000	0.30
PCMR10(T)	PCML10(T)	0.6250	1.500	0.750	0.484	2.625	5/8-18	1.625	26	18,000	0.36
PCMR8-12(T)	PCML8-12(T)	0.5000	1.750	0.875	0.453	2.875	3/4-16	1.750	24	25,000	0.57
PCMR10-12(T)	PCML10-12(T)	0.6250	1.750	0.875	0.484	2.875	3/4-16	1.750	24	25,000	0.57
PCMR12(T)	PCML12(T)	0.7500	1.750	0.875	0.593	2.875	3/4-16	1.750	24	25,000	0.57

Custom Service Process:Select Similar Product — Confirm MOQ — Send Inquiry — Send your Drawings or Samples — Customization
Select product (If your product is not on our website, select a similar product) — Confirm the quantity you need meet up with our MOQ — Send inquiry with your Drawings or Samples — We will reply to you and confirm details — Send details to our factory and start customization

Hot Selling Products

Quality Control

Every Unit Inspected Before Shipment

🔩

Raw Material Inspection

Material certifications verified before machining and assembly begin.

🔍

Dimensional Check

Critical dimensions are checked against drawing or sample requirements.

🔬

Surface Inspection

Visual inspection confirms finish quality, burr removal, and assembly cleanliness.

📋

Batch Documentation

Inspection reports and production traceability can be provided on request.

Applications

Where Rod End / Heim Joint Products Are Used

Steering and Suspension Linkages

Linkage rods and Heim-joint assemblies provide adjustable, serviceable connections for steering, suspension, and chassis systems. Match the joint type, thread, spacers, and alignment to the travel of the mechanism.

Motorsport and Off-Road Fabrication

These components are widely used in custom vehicle builds where geometry, length adjustment, and replaceable joints are important. Check shock loading, misalignment, fastener orientation, and maintenance access.

Industrial and Agricultural Controls

Rod-end linkages can connect levers, actuators, and control arms in agricultural and industrial equipment. Select material, race, sealing, and surface treatment for the expected contamination and oscillation.
