Description

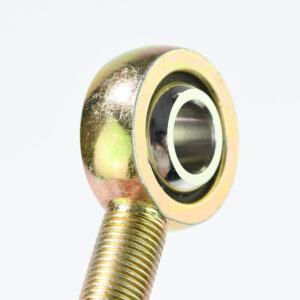

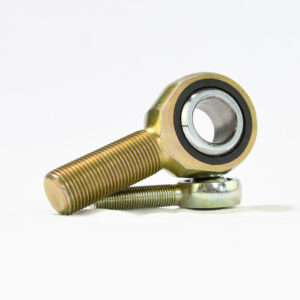

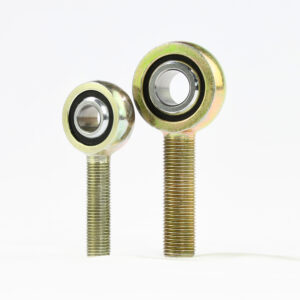

Item: PM/PF Injection Molded Self Lubricating Rod Ends
| BALL | RACE | BODY | |||||
| 52100 BEARING STEEL | INJECTION | CARBON STEEL | |||||
| PRECISION GROUND | MOLDED | YELLOW ZINC PLATED | |||||
| HEAT TREATED | REINFORCED | ||||||
| HARD CHROME PLATED | NYLON with PTFE | ||||||
Type:Male/Female
Thread:Right/Left
Regular Size:Male Type from PM3-12/Female Type from PF3-12
Inch Size and Metric Size Both Available
Custom Option:Material/Size/Stud Configurations
PM and PF Rod End Size Chart

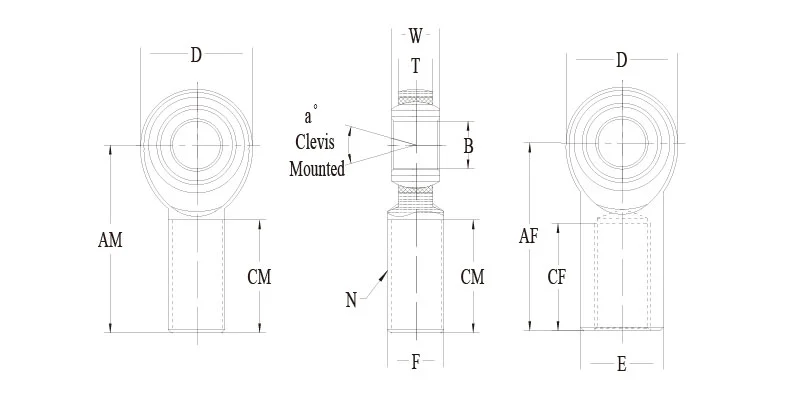

PM..G ROD END B D W T BALL AM N CM a° STATIC APPROX RIGHT LEFT DIA. DIA. WIDTH WIDTH DIA. LENGTH THREAD LENGTH MIS. RADIAL WEIGHT HAND HAND +0.0025 +0.010 +0.005 REF. REF. +0.015 UNF +0.062 ANGLE LOAD (LBS) PART NO. PART NO. -0.0005 -0.010 -0.005 -0.015 3A -0.031 REF. (LBS) PMR-3 PML-3 0.1900 0.625 0.312 0.250 0.437 1.250 10-32 0.750 13 1,174 0.03 PMR-4 PML-4 0.2500 0.750 0.375 0.281 0.500 1.562 1/4-28 1.000 16 2,168 0.04 PMR-5 PML-5 0.3125 0.875 0.437 0.344 0.625 1.875 5/16-24 1.250 14 2,796 0.07 PMR-6 PML-6 0.3750 1.000 0.500 0.406 0.719 1.938 3/8-24 1.250 12 4,012 0.11 PMR-7 PML-7 0.4375 1.125 0.562 0.437 0.812 2.125 7/16-20 1.375 14 4,244 0.16 PMR-8 PML-8 0.5000 1.312 0.625 0.500 0.937 2.438 1/2-20 1.500 12 6,453 0.25 PMR-10 PML-10 0.6250 1.500 0.750 0.562 1.125 2.625 5/8-18 1.625 16 7,400 0.38 PMR-12 PML-12 0.7500 1.750 0.875 0.687 1.312 2.875 3/4-16 1.750 14 10,937 0.60 PF..G ROD END B D W T BALL AF N CF a° STATIC APPROX PFR-3 PFL-3 0.1900 0.625 0.312 0.250 0.437 1.062 10-32 0.500 13 1,220 0.04 PFR-4 PFL-4 0.2500 0.750 0.375 0.281 0.500 1.312 1/4-28 0.687 16 2,500 0.06 PFR-5 PFL-5 0.3125 0.875 0.437 0.344 0.625 1.375 5/16-24 0.687 14 2,753 0.09 PFR-6 PFL-6 0.3750 1.000 0.500 0.406 0.719 1.625 3/8-24 0.812 12 3,950 0.15 PFR-7 PFL-7 0.4375 1.125 0.562 0.437 0.812 1.812 7/16-20 0.937 14 4,300 0.2 PFR-8 PFL-8 0.5000 1.312 0.625 0.500 0.937 2.125 1/2-20 1.062 12 6,453 0.33 PFR-10 PFL-10 0.6250 1.500 0.750 0.562 1.125 2.500 5/8-18 1.375 16 7,400 0.48 PFR-12 PFL-12 0.7500 1.750 0.875 0.687 1.312 2.875 3/4-16 1.562 14 10,937 0.72
Custom Service Process:Select Similar Product — Confirm MOQ — Send Inquiry — Send your Drawings or Samples — Customization
Select product (If your product is not on our website, select a similar product) — Confirm the quantity you need meet up with our MOQ — Send inquiry with your Drawings or Samples — We will reply to you and confirm details — Send details to our factory and start customization
