SA…TK Rod Ends
- Metric Rod End
Carbon Steel,Zinc Plated Housing;
Brass Outer Ring;
PTFE or Bronze Mesh Sliding Surface;
Hard Chrome Plated 52100 Bearing Steel Inner Ring;
Maintenance-free / Self-Lubricating Rod End
Male LH/RH Thread
Machining Type or Precision Forging Type
SA…TK Rod Ends Overview
SA TK Rod Ends
| BALL | RACE | BODY | ||||||
| 52100 BEARING STEEL | COPPER ALLOY | CARBON STEEL | ||||||
| PRECISION GROUND | SILVER ZINC PLATED | |||||||
| HEAT TREATED | PTFE LINER | |||||||
| HARD CHROME PLATED | ||||||||
Metric Rod End
Maintenance-free / Self-Lubricating Rod End
Male LH/RH Thread
Machining Type or Precision Forging Type

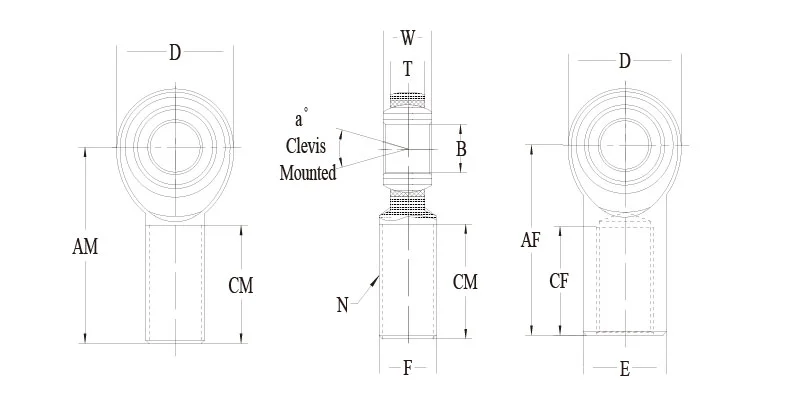

| SA-TK ROD END | B | D | W | T | AM | N | CM | a° | STATIC | APPROX | ||
| RIGHT | LEFT | DIA. | DIA. | WIDTH | WIDTH | LENGTH | THREAD | LENGTH | MIS. | RADIAL | WEIGHT | |
| HAND | HAND | 0.065 | 0.038 | 0.12 | REF. | 0.4 | METRIC | 1 | ANGLE | LOAD | (GRAMS) | |
| PART NO. | PART NO. | -0.012 | -0.038 | -0.12 | -0.4 | MALE | -1 | REF. | KN | |||
| SAR5TK | SAL5TK | 5 | 18.00 | 8 | 6.00 | 33 | M5 X0.8 | 19 | 4 | 7.5 | 13 | |
| SAR6TK | SAL6TK | 6 | 20.00 | 9 | 6.75 | 36 | M6 X 1.0 | 22 | 9 | 9.3 | 20 | |
| SAR8TK | SAL8TK | 8 | 24.00 | 12 | 9.00 | 42 | M8 X 1.25 | 25 | 13 | 16.7 | 33 | |
| SAR10TK | SAL10TK | 10 | 28.00 | 14 | 10.50 | 48 | M10 X 1.5 | 29 | 13 | 23.4 | 56 | |
| SAR12TK | SAL12TK | 12 | 32.00 | 16 | 12.00 | 54 | M12 X 1.75 | 33 | 13 | 32.0 | 87 | |
| SAR14TK | SAL14TK | 14 | 36.00 | 19 | 13.50 | 60 | M14 X 2.0 | 38 | 13 | 41.9 | 129 | |
| SAR16TK | SAL16TK | 16 | 42.00 | 21 | 15.00 | 66 | M16 X 2.0 | 40 | 13 | 52.7 | 189 | |
| SAR18TK | SAL18TK | 18 | 46.00 | 23 | 16.50 | 72 | M18 X 1.5 | 44 | 13 | 63.8 | 267 | |
| SAR20TK | SAL20TK | 20 | 50.00 | 25 | 18.00 | 78 | M20 X 1.5 | 47 | 13 | 78.1 | 348 | |
| SAR22TK | SAL22TK | 22 | 54.00 | 28 | 20.00 | 84 | M22 X 1.5 | 51 | 13 | 97.2 | 443 | |
| SAR25TK | SAL25TK | 25 | 60.00 | 31 | 22.00 | 94 | M24 X 2 | 58 | 13 | 122.1 | 600 | |
| SAR30TK | SAL30TK | 30 | 70.00 | 37 | 25.00 | 110 | M30 X 2 | 71 | 13 | 168.4 | 1030 | |
| SAR35TK | SAL35TK | 35 | 80.00 | 43 | 28.00 | 125 | M36 X 2 | 77 | 13 | 205.7 | 1600 | |
