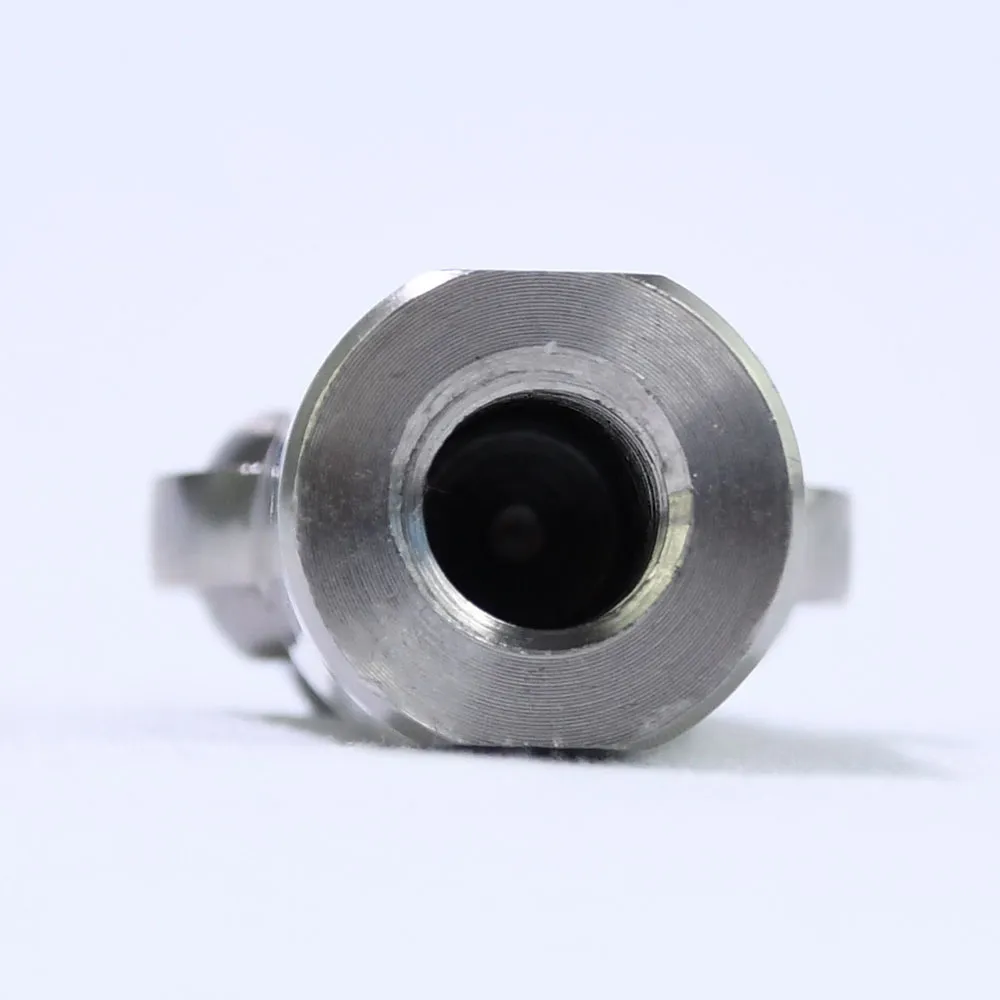

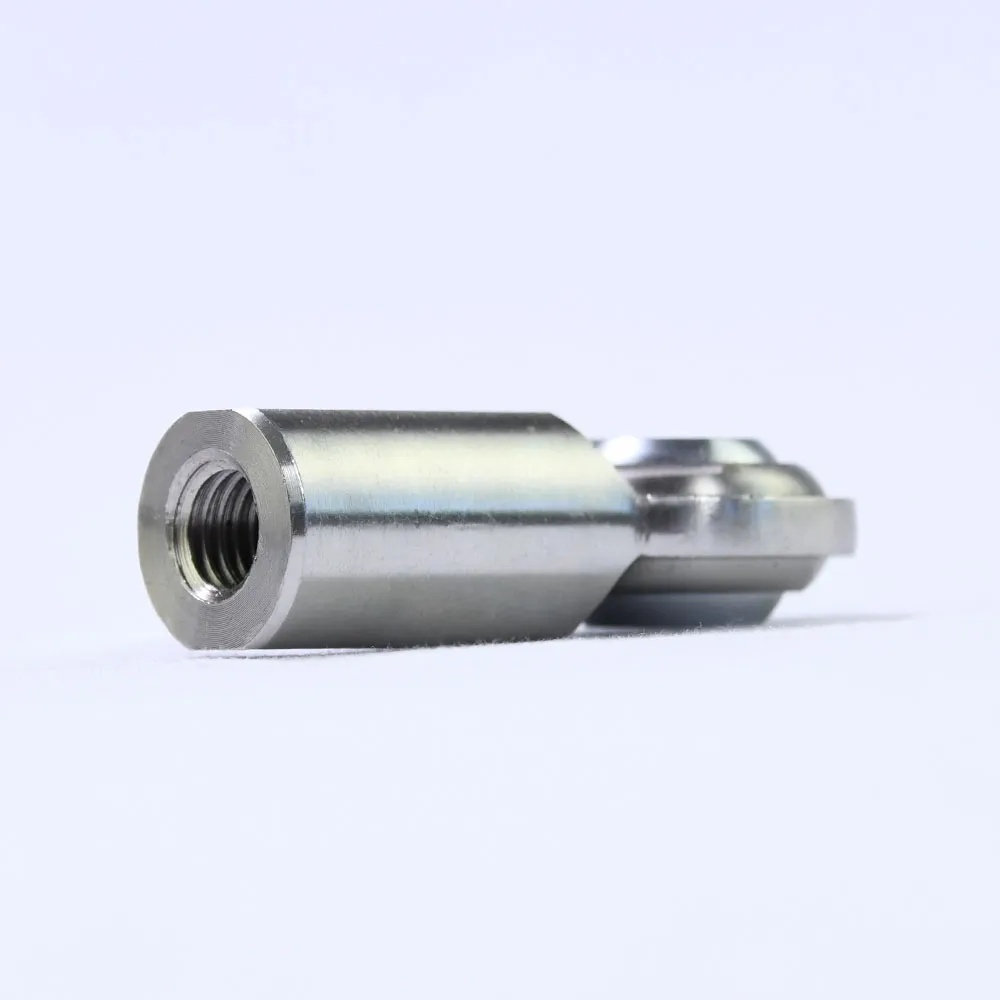

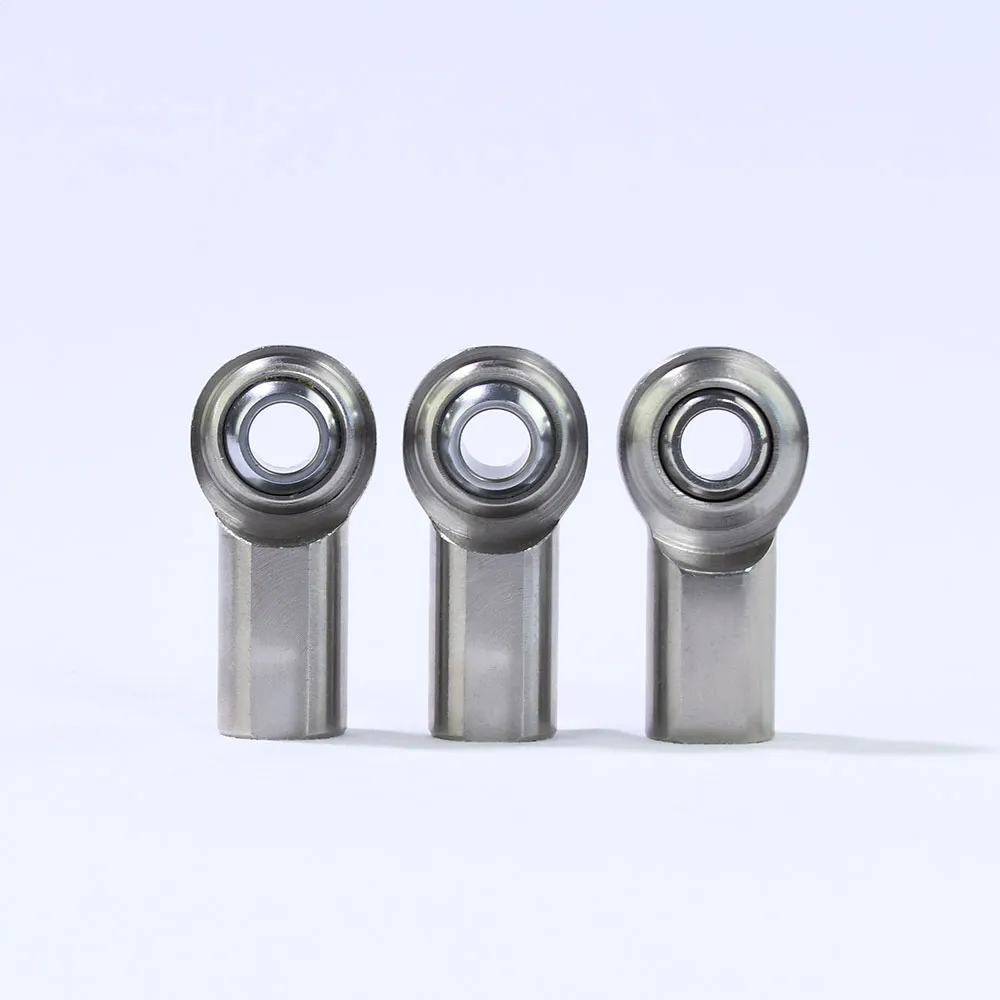

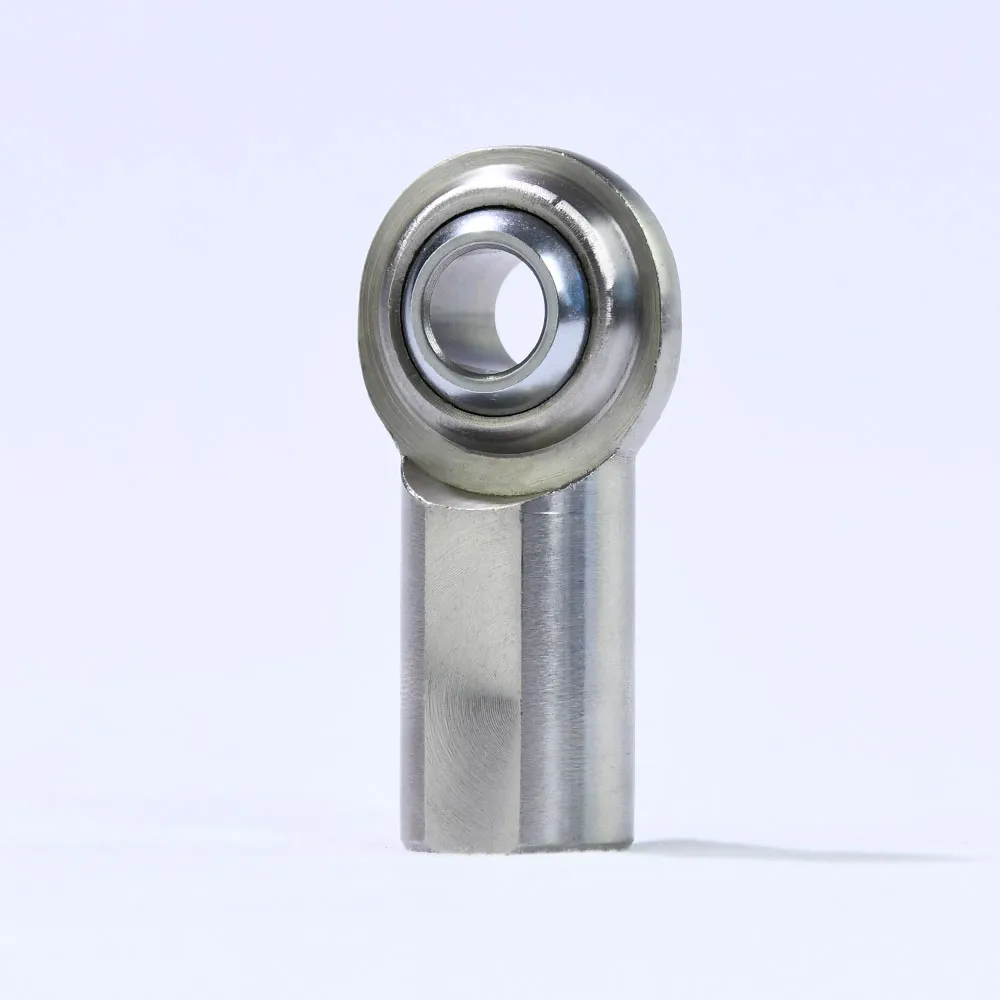

Bore 0.7500 / 3/4-16 ThreadSCFR12T SCFL12T 0.7500 3/4-16 Stainless Steel Female Rod End
SCM-T SCF-T Product Overview
SCFR12T / SCFL12T features a 0.7500″ bore (B) and 1.750″ body diameter (D), with a 1.312″ 440C stainless steel ball, precision ground and hard chrome plated. Overall body length (AF) is 2.875″, thread engagement (CF) measures 1.562″. Width (W) is 0.875″ and body thickness (T) is 0.593″. Approximate weight: 0.650 lbs.
Rated at 11,595 lb static radial load with ±24° misalignment angle, this 2-piece female rod end with a 3/4-16 UNF 3A internal thread suits maximum-load marine, offshore, and extreme-environment industrial structural linkages. The all-stainless construction (304 body, 440C ball) combined with the PTFE liner delivers maintenance-free operation in wet, corrosive, or food-grade environments where carbon steel or aluminum alternatives are not acceptable.
PTFE liner is standard on all SCM-T / SCF-T models for maintenance-free, lubrication-free operation. Stud configuration available (add suffix S). Alternative body materials available on request: 316 stainless steel and 17-4 PH stainless steel. Passivation and polished finish also available.
SCM-T SCF-T Series — Full Size Range
All available sizes in the SCM-T SCF-T series. Can’t find your size? Contact us for custom dimensions.
| RIGHT HAND PART NO. | LEFT HAND PART NO. | B DIA. +.0025 -.0005 | D DIA. +.010 -.010 | W WIDTH +.005 -.005 | T WIDTH +.005 -.005 | BALL DIA. REF. | AM LENGTH +.015 -.015 | N THREAD UNF 3A | CM LENGTH +.062 -.031 | a° MIS. ANGLE REF. | STATIC RADIAL LOAD (LBS) | APPROX WEIGHT (LBS) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SCMR3T | SCML3T | 0.1900 | 0.625 | 0.312 | 0.234 | 0.437 | 1.250 | 10-32 | 0.750 | 20 | 1,190 | 0.03 |
| SCMR4T | SCML4T | 0.2500 | 0.750 | 0.375 | 0.250 | 0.500 | 1.562 | 1/4-28 | 1.000 | 27 | 2,165 | 0.04 |
| SCMR5T | SCML5T | 0.3125 | 0.875 | 0.437 | 0.312 | 0.625 | 1.875 | 5/16-24 | 1.250 | 22 | 3,278 | 0.07 |
| SCMR6T | SCML6T | 0.3750 | 1.000 | 0.500 | 0.359 | 0.719 | 1.938 | 3/8-24 | 1.250 | 22 | 4,527 | 0.11 |
| SCMR7T | SCML7T | 0.4375 | 1.125 | 0.562 | 0.406 | 0.812 | 2.125 | 7/16-20 | 1.375 | 21 | 5,689 | 0.15 |
| SCMR8T | SCML8T | 0.5000 | 1.312 | 0.625 | 0.453 | 0.937 | 2.438 | 1/2-20 | 1.500 | 20 | 7,352 | 0.24 |
| SCMR10T | SCML10T | 0.6250 | 1.500 | 0.750 | 0.484 | 1.125 | 2.625 | 5/8-18 | 1.625 | 26 | 8,220 | 0.36 |
| SCMR12T | SCML12T | 0.7500 | 1.750 | 0.875 | 0.593 | 1.312 | 2.875 | 3/4-16 | 1.750 | 24 | 11,595 | 0.57 |
| SCMR14T | SCML14T | 0.8750 | 2.000 | 0.875 | 0.670 | 1.375 | 3.375 | 7/8-14 | 2.000 | 24 | - | 0.74 |
| SCMR16T | SCML16T | 1.0000 | 2.750 | 1.375 | 0.913 | 1.875 | 4.125 | 1 1/4-12 | 2.125 | 28 | - | 1.98 |
| RIGHT HAND PART NO. | LEFT HAND PART NO. | B | D | W | T | BALL | AF | N | CF | a° | STATIC | LBS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SCFR3T | SCFL3T | 0.1900 | 0.625 | 0.312 | 0.234 | 0.437 | 1.062 | 10-32 | 0.500 | 20 | 1,190 | 0.04 |
| SCFR4T | SCFL4T | 0.2500 | 0.750 | 0.375 | 0.250 | 0.500 | 1.312 | 1/4-28 | 0.687 | 27 | 2,165 | 0.05 |
| SCFR5T | SCFL5T | 0.3125 | 0.875 | 0.437 | 0.312 | 0.625 | 1.375 | 5/16-24 | 0.687 | 22 | 3,278 | 0.08 |
| SCFR6T | SCFL6T | 0.3750 | 1.000 | 0.500 | 0.359 | 0.719 | 1.625 | 3/8-24 | 0.812 | 22 | 4,527 | 0.13 |
| SCFR7T | SCFL7T | 0.4375 | 1.125 | 0.562 | 0.406 | 0.812 | 1.812 | 7/16-20 | 0.937 | 21 | 5,689 | 0.18 |
| SCFR8T | SCFL8T | 0.5000 | 1.312 | 0.625 | 0.453 | 0.937 | 2.125 | 1/2-20 | 1.062 | 20 | 7,352 | 0.29 |
| SCFR10T | SCFL10T | 0.6250 | 1.500 | 0.750 | 0.484 | 1.125 | 2.500 | 5/8-18 | 1.375 | 26 | 8,220 | 0.43 |
| SCFR12T | SCFL12T | 0.7500 | 1.750 | 0.875 | 0.593 | 1.312 | 2.875 | 3/4-16 | 1.562 | 24 | 11,595 | 0.65 |
Every Unit Inspected Before Shipment
Raw Material Inspection
Material certifications verified. Composition confirmed by spectrometer before machining begins.
Thread Gauge Inspection
100% go/no-go gauge check on all threaded sections. Zero tolerance on dimensional non-conformance.
Load Capacity Test
Static and dynamic load tests run on representative samples from each production batch.
Dimensional Measurement
CMM verification of critical dimensions — ball diameter, bore, thread pitch, and body length.
Surface Inspection
Visual and tactile inspection for burrs, scratches, surface cracks, and plating defects.
Articulation Test
Misalignment angle and torque measured to confirm liner performance meets specification.
Heat Treatment Verify
Hardness tests confirm proper heat treatment on chromoly steel bodies and bearing balls.
Batch Documentation
Full traceability from raw material heat number to finished part. COC and inspection reports available.
Where SCM-T SCF-T Rod Ends Are Used
More from the SCM-T SCF-T Series
Request a Quote for the SCM-T SCF-T Series
Share your part number, required quantity, and any special material or packaging requirements. We respond within 24 hours.
Request a Quote
Please submit the form or email [email protected]
SCM-T SCF-T Frequently Asked Questions
What is the difference between SCM-T and SCF-T rod ends?
SCM-T parts are male-thread stainless rod ends and SCF-T parts are female-thread stainless rod ends. Both belong to the same 2-piece PTFE-lined stainless steel series and follow the same corrosion-resistant material direction.
What materials are used in the SCM-T-SCF-T series?
This series uses a 440C stainless steel ball with hard chrome plating and a 304 stainless steel body in a PTFE-lined construction. Alternate stainless body grades are also available depending on project requirements.
What does the T suffix mean on SCMR and SCFR part numbers?
The T suffix identifies the PTFE-lined version. For example, SCMR12T refers to the PTFE-lined version of that stainless rod end size.
Are other stainless grades available for this series?
Yes. In addition to the standard 304 stainless body, 316 stainless steel and 17-4 stainless steel options are available depending on the operating environment and load requirements.
Can SCM-T-SCF-T rod ends be ordered with passivation or polished finish?
Yes. Passivated stainless steel and polished stainless steel body options are available depending on your specification and order requirements.
What applications are best suited to the SCM-T-SCF-T series?
This series is suited to marine equipment, food and packaging machinery, chemical or washdown systems, outdoor service hardware, and other corrosion-sensitive linkage applications where stainless construction and PTFE-lined performance are preferred.
