SCM/SCF Stainless Steel 2-Piece Rod End Bearings
- 2 Piece, Stainless Steel, Teflon Lined
Ball: 440C Stainless Steel, Precision Ground, Heat Treated, Hard Chrome Plated
Body:304 Stainless Steel, PTFE Lined Type: Male/Female
Thread: Right/Left
Regular Size: Male Type from SCM3T-SCM16T/Female Type from SCF3T-SCF12T
Inch Size and Metric Size Both Available
Custom Option: Material/Size/Stud Configurations/Polishing
SCM/SCF Stainless Steel 2-Piece Rod End Bearings Overview
SCM/SCF Stainless Steel Rod Ends Details
| BALL | BODY | ||||
| 440C STAINLESS STEEL | 304 STAINLESS STEELL | ||||
| PRECISION GROUND | PTFE LINED | ||||
| HEAT TREATED | |||||
| HARD CHROME PLATED | |||||
Type: Male/Female
Thread: Right/Left
Regular Size: Male Type from SCM3T-SCM16T/Female Type from SCF3T-SCF12T
Inch Size and Metric Size Both Available
Custom Option: Material/Size/Stud Configurations/Polishing

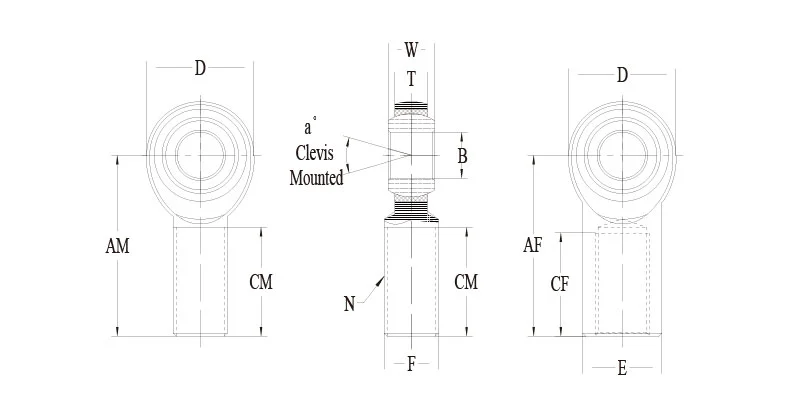

SCM/SCF Stainless Steel Rod Ends Size Chart
| SCM-T ROD END | B | D | W | T | BALL | AM | N | CM | a° | STATIC | APPROX | |
| RIGHT | LEFT | DIA. | DIA. | WIDTH | WIDTH | DIA. | LENGTH | THREAD | LENGTH | MIS. | RADIAL | WEIGHT |
| HAND | HAND | +0.0025 | +0.010 | +0.005 | REF. | REF. | +0.015 | UNF | +0.062 | ANGLE | LOAD | (LBS) |
| PART NO. | PART NO. | -0.0005 | -0.010 | -0.005 | -0.015 | 3A | -0.031 | REF. | (LBS) | |||
| SCMR3T | SCML3T | 0.1900 | 0.625 | 0.312 | 0.234 | 0.437 | 1.250 | 10-32 | 0.750 | 20 | 912 | 0.03 |
| SCMR4T | SCML4T | 0.2500 | 0.750 | 0.375 | 0.250 | 0.500 | 1.562 | 1/4-28 | 1.000 | 27 | 1,370 | 0.04 |
| SCMR5T | SCML5T | 0.3125 | 0.875 | 0.437 | 0.312 | 0.625 | 1.875 | 5/16-24 | 1.250 | 22 | 2,050 | 0.07 |
| SCMR6T | SCML6T | 0.3750 | 1.000 | 0.500 | 0.359 | 0.719 | 1.938 | 3/8-24 | 1.250 | 22 | 3,040 | 0.11 |
| SCMR7T | SCML7T | 0.4375 | 1.125 | 0.562 | 0.406 | 0.812 | 2.125 | 7/16-20 | 1.375 | 21 | 3,780 | 0.15 |
| SCMR8T | SCML8T | 0.5000 | 1.312 | 0.625 | 0.453 | 0.937 | 2.438 | 1/2-20 | 1.500 | 20 | 4,700 | 0.24 |
| SCMR10T | SCML10T | 0.6250 | 1.500 | 0.750 | 0.484 | 1.125 | 2.625 | 5/8-18 | 1.625 | 26 | 5,860 | 0.36 |
| SCMR12T | SCML12T | 0.7500 | 1.750 | 0.875 | 0.593 | 1.312 | 2.875 | 3/4-16 | 1.750 | 24 | 7,512 | 0.57 |
| SCF-T ROD END | B | D | W | T | BALL | AF | N | CF | a° | STATIC | APPROX | |
| SCFR3T | SCFL3T | 0.1900 | 0.625 | 0.312 | 0.234 | 0.437 | 1.062 | 10-32 | 0.500 | 20 | 930 | 0.04 |
| SCFR4T | SCFL4T | 0.2500 | 0.750 | 0.375 | 0.250 | 0.500 | 1.312 | 1/4-28 | 0.687 | 27 | 1,380 | 0.05 |
| SCFR5T | SCFL5T | 0.3125 | 0.875 | 0.437 | 0.312 | 0.625 | 1.375 | 5/16-24 | 0.687 | 22 | 2,100 | 0.08 |
| SCFR6T | SCFL6T | 0.3750 | 1.000 | 0.500 | 0.359 | 0.719 | 1.625 | 3/8-24 | 0.812 | 22 | 3,080 | 0.13 |
| SCFR7T | SCFL7T | 0.4375 | 1.125 | 0.562 | 0.406 | 0.812 | 1.812 | 7/16-20 | 0.937 | 21 | 3,790 | 0.18 |
| SCFR8T | SCFL8T | 0.5000 | 1.312 | 0.625 | 0.453 | 0.937 | 2.125 | 1/2-20 | 1.062 | 20 | 4,720 | 0.29 |
| SCFR10T | SCFL10T | 0.6250 | 1.500 | 0.750 | 0.484 | 1.125 | 2.500 | 5/8-18 | 1.375 | 26 | 5,870 | 0.43 |
| SCFR12T | SCFL12T | 0.7500 | 1.750 | 0.875 | 0.593 | 1.312 | 2.875 | 3/4-16 | 1.562 | 24 | 7,520 | 0.65 |
