B 2.0000 / D 3.5000SLB32H Spherical Bearing (Inch)
SLB Product Overview
SLB32H is a load-slot spherical plain bearing with a 2.0000″ bore (B) and 3.5000″ OD (D). Body width (W) = 1.750″, inner race width (T) = 1.375″. Ball diameter = 2.937″. Flat OD (O) = 2.360″. Approximate weight: 2.650 lb.

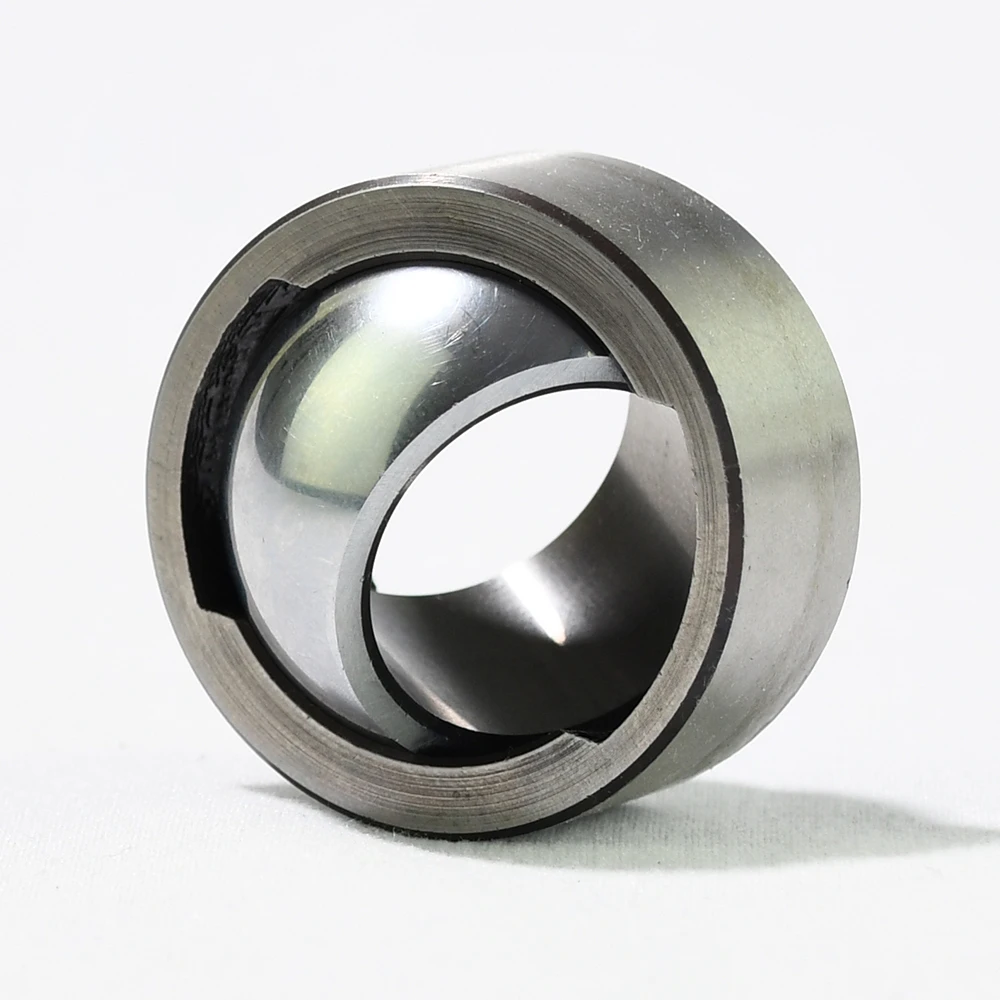

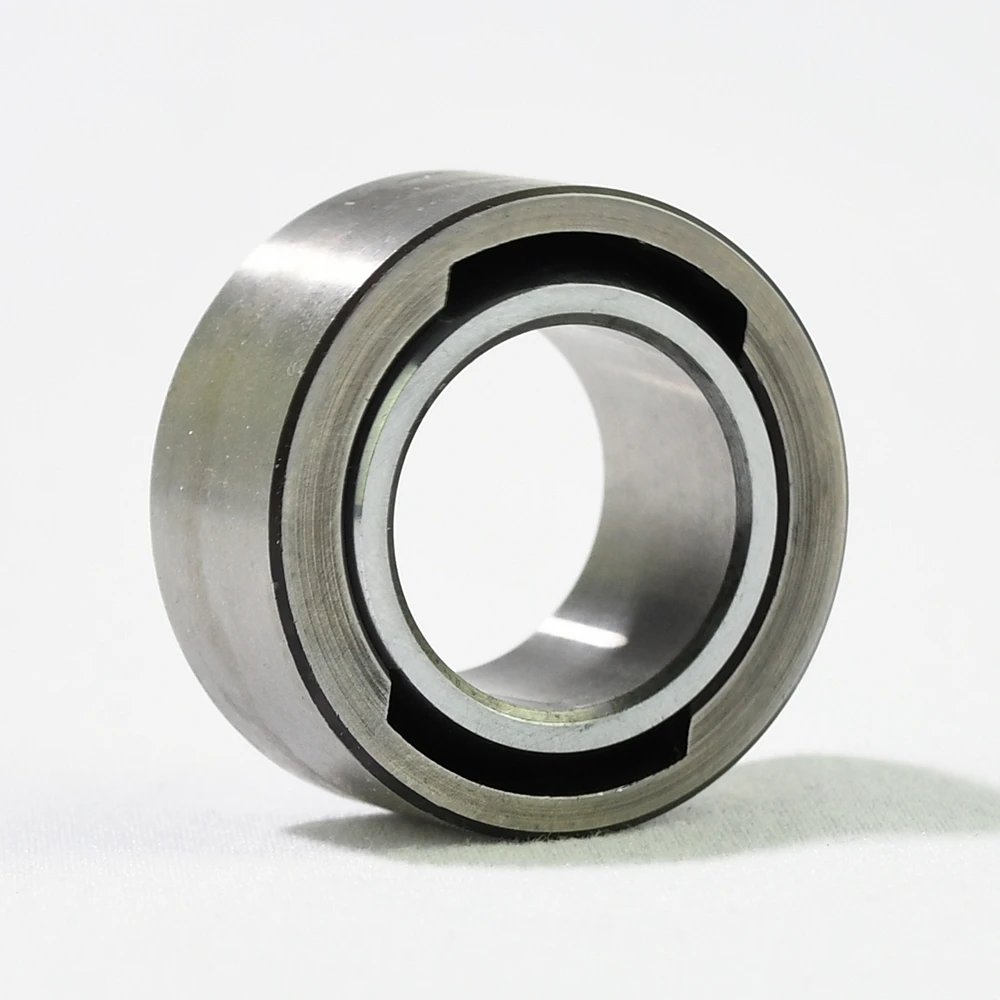

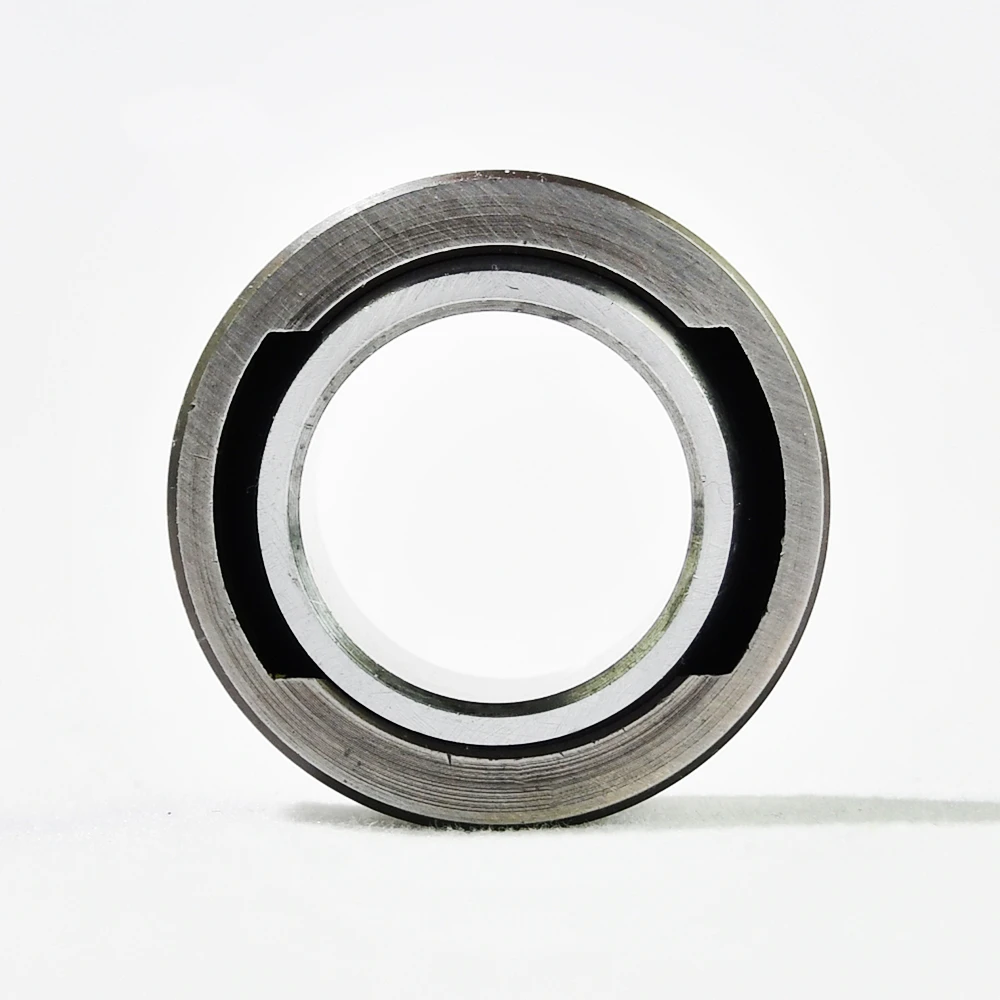

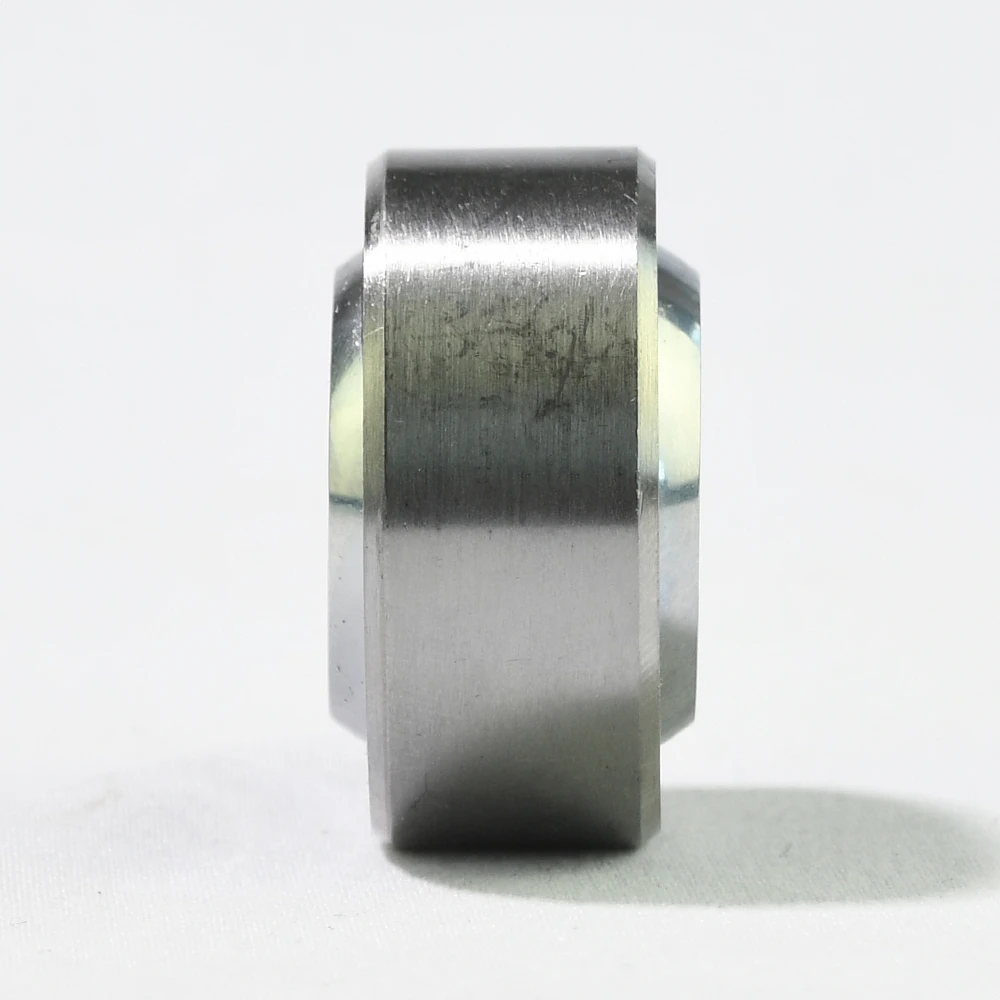

Rated at 217,060 lb static radial load with ±8.5° misalignment angle. The 52100 bearing steel ball is precision ground, heat treated, and hard chrome plated. The alloy steel race is heat treated and oil coated, with a reinforced nylon race and PTFE liner for self-lubricating operation. The load-slot design allows the ball and race to be assembled from the side, simplifying installation in confined or fixed-pin assemblies. Stainless steel options available for corrosive environments.
Stainless race + stainless ball: add ‘-SS’ suffix (e.g., SLB32H-SS). Stainless race + steel ball: add ‘-S’ suffix (e.g., SLB32H-S). Zinc plated race available on request. Standard COM(-T) series available without the load-slot feature.
SLB Series — Full Size Range
All available sizes in the SLB series. Can’t find your size? Contact us for custom dimensions.
| SLB LOADER SLOT PART NUMBER | B DIA. +.0015 -.0005 | D DIA. +.0000 -.0007 | W WIDTH +.005 -.005 | T WIDTH +.005 -.005 | O FLAT DIA. REF. | M CHAMFER REF. | BALL DIA. REF. | a° MIS. ANGLE REF. | STATIC RADIAL LOAD (LBS) | APPROX WEIGHT (LBS) |
|---|---|---|---|---|---|---|---|---|---|---|
| SLB8 | 0.5000 | 1.0000 | 0.500 | 0.390 | 0.640 | 0.032 | 0.781 | 9.5 | 13,257 | 0.060 |
| SLB10 | 0.6250 | 1.1875 | 0.625 | 0.500 | 0.780 | 0.032 | 0.968 | 8.5 | 21,280 | 0.100 |
| SLB12 | 0.7500 | 1.4375 | 0.750 | 0.593 | 0.920 | 0.044 | 1.187 | 9.0 | 31,920 | 0.190 |
| SLB14 | 0.8750 | 1.5625 | 0.875 | 0.703 | 0.980 | 0.044 | 1.312 | 9.5 | 41,960 | 0.263 |
| SLB16 | 1.0000 | 1.7500 | 1.000 | 0.797 | 1.118 | 0.044 | 1.500 | 10.0 | 55,200 | 0.386 |
| SLB16H | 1.0000 | 2.0000 | 1.000 | 0.781 | 1.360 | 0.032 | 1.687 | 9.0 | 70,820 | 0.553 |
| SLB20H | 1.2500 | 2.3750 | 1.187 | 0.937 | 1.610 | 0.032 | 2.000 | 8.5 | 100,730 | 0.895 |
| SLB24H | 1.5000 | 2.7500 | 1.375 | 1.094 | 1.860 | 0.032 | 2.312 | 8.5 | 135,950 | 1.358 |
| SLB32H | 2.0000 | 3.5000 | 1.750 | 1.375 | 2.360 | 0.044 | 2.937 | 8.5 | 217,060 | 2.650 |
Every Unit Inspected Before Shipment
Raw Material Inspection
Material certifications verified. Composition confirmed by spectrometer before machining begins.
Thread Gauge Inspection
100% go/no-go gauge check on all threaded sections. Zero tolerance on dimensional non-conformance.
Load Capacity Test
Static and dynamic load tests run on representative samples from each production batch.
Dimensional Measurement
CMM verification of critical dimensions — ball diameter, bore, thread pitch, and body length.
Surface Inspection
Visual and tactile inspection for burrs, scratches, surface cracks, and plating defects.
Articulation Test
Misalignment angle and torque measured to confirm liner performance meets specification.
Heat Treatment Verify
Hardness tests confirm proper heat treatment on chromoly steel bodies and bearing balls.
Batch Documentation
Full traceability from raw material heat number to finished part. COC and inspection reports available.
Where SLB Spherical Bearings Are Used
More from the SLB Series
Request a Quote for the SLB Series
Share your part number, required quantity, and any special material or packaging requirements. We respond within 24 hours.
Request a Quote
Please submit the form or email [email protected]
SLB Frequently Asked Questions
What is SLB used for?
SLB spherical bearings are used in articulated joints and linkage positions where load-slot geometry, reinforced nylon PTFE race construction, and compact radial support are required.
What makes SLB different from standard metal-to-metal spherical bearings?
SLB uses a reinforced nylon race with PTFE and load-slot construction, giving it a different wear and articulation profile from standard metal-to-metal spherical bearings.
What materials are used in SLB spherical bearings?
SLB uses a 52100 bearing steel ball, hard chrome plated and precision ground, together with a heat-treated alloy steel race and a reinforced nylon race with PTFE liner construction.
Are stainless options available in SLB?
Yes. Add -SS for stainless race and stainless ball, or -S for stainless race with steel ball, for example SLB12-SS or SLB12-S.
What is the benefit of the PTFE nylon race in SLB?
The reinforced nylon race with PTFE helps reduce friction and supports smoother articulated movement in applications that benefit from lined spherical bearing construction.
How do I choose the right SLB size?
Start with the required bore, outer diameter, widths, ball size, and static radial load shown in the size chart, then confirm whether standard, -S, or -SS material configuration is the better fit for the application.
