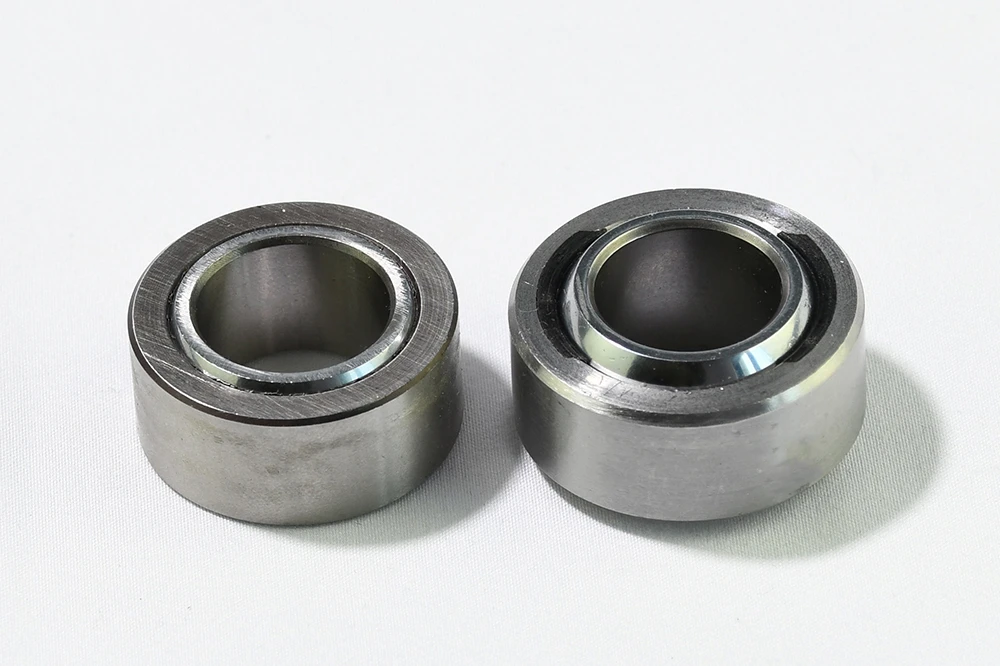

SLB — Inch Load Slot Spherical Bearings
SLB
Inch Load Slot Spherical Bearings
Reinforced Nylon Race with PTFE · Heat Treated Alloy Steel Race · Stainless Optional
9
Available Sizes
4
Image Views Included
Full Spec Range
Search by spec.
| Type | Part No. | B DIA. | D DIA. | W WIDTH | T WIDTH | O FLAT DIA. | M CHAMFER | a° | STATIC | WEIGHT | Qty | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SLB Inch | SLB8 | 0.5000 | 1.0000 | 0.500 | 0.390 | 0.640 | 0.032 | 9.5 | 13,257 | 0.060 | ||
| SLB Inch | SLB10 | 0.6250 | 1.1875 | 0.625 | 0.500 | 0.780 | 0.032 | 8.5 | 21,280 | 0.100 | ||
| SLB Inch | SLB12 | 0.7500 | 1.4375 | 0.750 | 0.593 | 0.920 | 0.044 | 9.0 | 31,920 | 0.190 | ||
| SLB Inch | SLB14 | 0.8750 | 1.5625 | 0.875 | 0.703 | 0.980 | 0.044 | 9.5 | 41,960 | 0.263 | ||
| SLB Inch | SLB16 | 1.0000 | 1.7500 | 1.000 | 0.797 | 1.118 | 0.044 | 10.0 | 55,200 | 0.386 | ||
| SLB Inch | SLB16H | 1.0000 | 2.0000 | 1.000 | 0.781 | 1.360 | 0.032 | 9.0 | 70,820 | 0.553 | ||
| SLB Inch | SLB20H | 1.2500 | 2.3750 | 1.187 | 0.937 | 1.610 | 0.032 | 8.5 | 100,730 | 0.895 | ||
| SLB Inch | SLB24H | 1.5000 | 2.7500 | 1.375 | 1.094 | 1.860 | 0.032 | 8.5 | 135,950 | 1.358 |
Technical Spec.
- Ball: 52100 bearing steel, precision ground, heat treated, and hard chrome plated. 440C stainless optional.
- Race: Alloy steel, heat treated, oil coated. Stainless steel optional, zinc plated optional.
- Liner: Reinforced nylon race with PTFE for low-friction load-slot articulation.
- Construction: SLB uses a load-slot spherical bearing design for PTFE-lined commercial and heavy-duty applications.
Notes
- Stainless race and ball: add
-SSto the suffix, for exampleSLB12-SS. - Stainless race and steel ball: add
-Sto the suffix, for exampleSLB12-S. - Configuration: this page covers the inch SLB load-slot spherical bearing size range.
