SYZ female rod end bearing Adjustable Tensioning Rod Joint Stainless Steel

Name: SYZ female rod end bearing Adjustable Tensioning Rod Joint Stainless Steel
Brand: SYZ Rod Ends
Availability: InStock

✓ ISO 9001 Certified

✓ SGS Verified

✓ 26+ Years Factory

✓ OEM / ODM Ready

Adjustable Tensioning Rod Joint with 4130 chromoly housing
5/8-18 SAE thread, 5/8" hole, left & right hand
Includes jam nut and female rod end bearing
Chrome plated for durability and corrosion resistance
Lateral load rating up to 17.955 lb

Get a Quote →

⚡ Typically responds within 24 hours

MOQ:50 pcs / model

Lead Time:7–15 days

Sample:Free (excl. freight)

Payment:T/T · PayPal · L/C

Overview

SYZ female rod end bearing Adjustable Tensioning Rod Joint Stainless Steel Overview

[Adjustable Tensioning Rod Joint Kit]

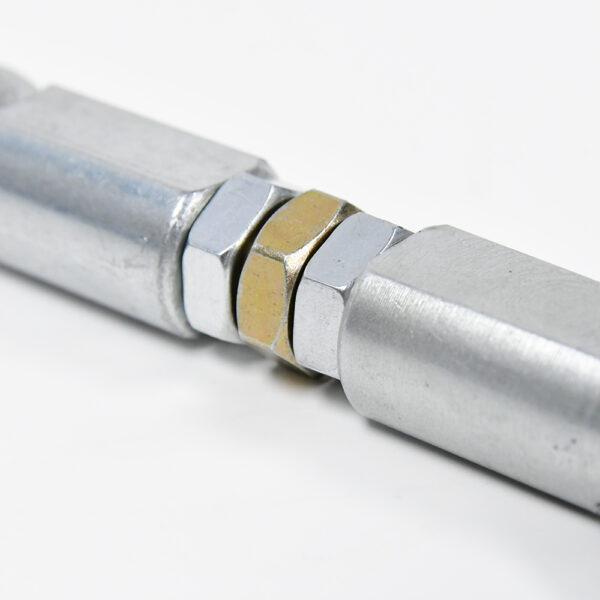

This Tensioning Rod Joint assembly includes a female rod end bearing, jam nut, and an adjustable rod joint designed for high-load performance and adjustability. It’s ideal for motorsport and mechanical linkage systems requiring fine-tuned tension and alignment.

[Durable 4130 Chromoly Construction]

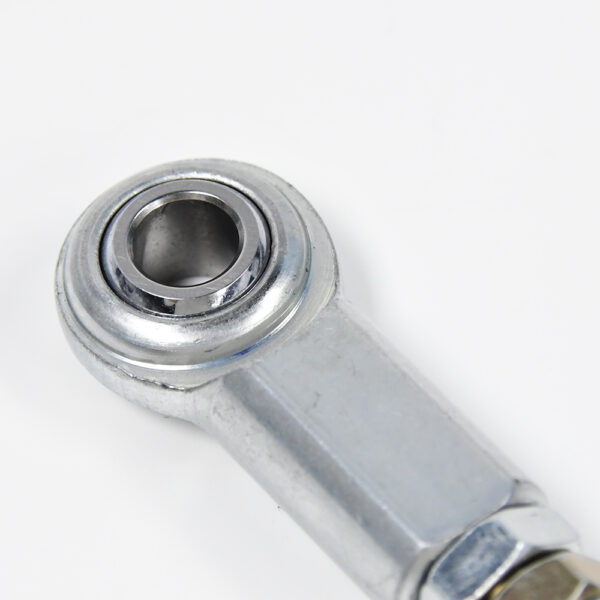

The rod end housing is precision machined from super-tough 4130 chromoly steel, known for its strength-to-weight ratio. The surface is chrome plated for lasting corrosion resistance and a polished finish.

[Precision Fit & Thread Specs]
Features a 5/8-18 SAE thread pitch with a 5/8″ (.625) bore, compatible with both right and left hand threads. This design allows for efficient assembly and accurate alignment under lateral loads up to 17.955 lb.

[Complete Heim Joint Kit]
Everything you need is included—rod end, jam nut, and adjustable sleeve—making it a great choice for aftermarket upgrades or OEM-style replacements in custom builds.

[OEM & Custom Options Available]
SYZ offers custom machining, finishes, or bulk orders. Contact us today to request a drawing or free sample.

Hot Selling Products

Quality Control

Every Unit Inspected Before Shipment

🔩

Raw Material Inspection

Material certifications verified before machining and assembly begin.

🔍

Dimensional Check

Critical dimensions are checked against drawing or sample requirements.

🔬

Surface Inspection

Visual inspection confirms finish quality, burr removal, and assembly cleanliness.

📋

Batch Documentation

Inspection reports and production traceability can be provided on request.

Applications

Where Linkage Rod Products Are Used

Steering and Suspension Linkages

Linkage rods and Heim-joint assemblies provide adjustable, serviceable connections for steering, suspension, and chassis systems. Match the joint type, thread, spacers, and alignment to the travel of the mechanism.

Motorsport and Off-Road Fabrication

These components are widely used in custom vehicle builds where geometry, length adjustment, and replaceable joints are important. Check shock loading, misalignment, fastener orientation, and maintenance access.

Industrial and Agricultural Controls

Rod-end linkages can connect levers, actuators, and control arms in agricultural and industrial equipment. Select material, race, sealing, and surface treatment for the expected contamination and oscillation.
