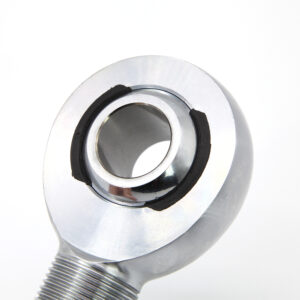

XM/XF Heavy Duty Chrome Moly Loader Slot Bearings Spherical Rod End
- Loader Slot Structure, Heavy Duty, Nylon Race, Self-Lubricating, Self-Sealing
Ball:52100 Bearing Steel, Precision Ground, Heat Treated, Hard Chrome Plated
Race: Injection, Molded, Reinforced, Nylon with PTFE
Body:4130 Chromoly Steel, Heat Treated, Hard Chrome Plated Type: Male/Female
Thread: Right/Left
Regular Size: Male Type from XM3-XM32/Female Type from XF3-XF16
Inch Size and Metric Size Both Available
Custom Option: Material/Size/Stud Configurations
XM/XF Heavy Duty Chrome Moly Loader Slot Bearings Spherical Rod End Overview
Item: XM/XF Heavy Duty Chrome Moly Loader Slot Bearings Spherical Rod End
| BALL | RACE | BODY | |||||
| 52100 BEARING STEEL | INJECTION | 4130 CHROMOLY STEEL | |||||
| PRECISION GROUND | MOLDED | HEAT TREATED | |||||
| HEAT TREATED | REINFORCED | HARD CHROME PLATED | |||||
| HARD CHROME PLATED | NYLON WITH PTFE | ||||||
Type:Male/Female
Thread:Right/Left
Regular Size: Male Type from XM3-XM32/Female Type from XF3-XF16
Inch Size and Metric Size Both Available
Custom Option:Material/Size/Stud Configurations
XM XF Chromoly Heim Joint Dimension Chart
| MALE ROD END RH. | MALE ROD END LH. | B | D | W | T | BALL | AF | N | CF | a° | STATIC | LBS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XMR3 | XML3 | 0.19 | 0.625 | 0.312 | 0.25 | 0.437 | 1.25 | 10-32 | 0.75 | 13 | 2851 | 0.03 |
| XMR3-4 | XML3-4 | 0.19 | 0.75 | 0.312 | 0.25 | 0.437 | 1.562 | 1/4-28 | 1 | 10 | 5260 | 0.04 |
| XMR4 | XML4 | 0.25 | 0.75 | 0.375 | 0.281 | 0.5 | 1.562 | 1/4-28 | 1 | 16 | 5260 | 0.04 |
| XMR4-5 | XML4-5 | 0.25 | 0.875 | 0.375 | 0.281 | 0.5 | 1.875 | 5/16-24 | 1.25 | 13 | 8452 | 0.07 |
| XMR5 | XML5 | 0.3125 | 0.875 | 0.437 | 0.344 | 0.625 | 1.875 | 5/16-24 | 1.25 | 14 | 7639 | 0.07 |
| XMR5-6 | XML5-6 | 0.3125 | 1 | 0.437 | 0.344 | 0.625 | 1.938 | 3/8-24 | 1.25 | 12 | 12978 | 0.11 |
| XMR6 | XML6 | 0.375 | 1 | 0.5 | 0.406 | 0.719 | 1.938 | 3/8-24 | 1.25 | 12 | 9544 | 0.11 |
| XMR6-7 | XML6-7 | 0.375 | 1.125 | 0.5 | 0.406 | 0.719 | 2.125 | 7/16-20 | 1.375 | 10 | 17508 | 0.15 |
| XMR7 | XML7 | 0.4375 | 1.125 | 0.562 | 0.437 | 0.812 | 2.125 | 7/16-20 | 1.375 | 14 | 10285 | 0.15 |
| XMR7-8 | XML7-8 | 0.4375 | 1.312 | 0.562 | 0.437 | 0.812 | 2.438 | 1/2-20 | 1.5 | 12 | 23452 | 0.24 |
| XMR8 | XML8 | 0.5 | 1.312 | 0.625 | 0.5 | 0.937 | 2.438 | 1/2-20 | 1.5 | 12 | 16238 | 0.24 |
| XMR8-10 | XML8-10 | 0.5 | 1.5 | 0.625 | 0.5 | 0.937 | 2.625 | 5/8-18 | 1.625 | 10 | 31390 | 0.36 |
| XMR8-12 | XML8-12 | 0.5 | 1.75 | 0.625 | 0.562 | 1.125 | 2.875 | 3/4-16 | 1.75 | 16 | 40572 | 0.42 |
| XMR10 | XML10 | 0.625 | 1.5 | 0.75 | 0.562 | 1.125 | 2.625 | 5/8-18 | 1.625 | 16 | 17955 | 0.36 |
| XMR12MM-10 | XML12MM-10 | 12MM | 1.5 | 0.75 | 0.562 | 1.125 | 2.625 | 5/8-18 | 1.625 | 16 | 31390 | 0.36 |
| XMR10-12 | XML10-12 | 0.625 | 1.75 | 0.75 | 0.562 | 1.125 | 2.875 | 3/4-16 | 1.75 | 13 | 40572 | 0.57 |
| XMR12 | XML12 | 0.75 | 1.75 | 0.875 | 0.687 | 1.312 | 2.875 | 3/4-16 | 1.75 | 14 | 28081 | 0.57 |
| XMR12-14 | XML12-14 | 0.75 | 2 | 0.875 | 0.687 | 1.312 | 3.375 | 7/8-14 | 1.875 | 12 | 55692 | 0.88 |
| XMR14 | XML14 | 0.875 | 2 | 0.875 | 0.765 | 1.375 | 3.375 | 7/8-14 | 2 | 7 | 45051 | 0.88 |
| XMR16 | XML16 | 1 | 2.75 | 1.375 | 1 | 1.875 | 4.125 | 1 1/4-12 | 2.125 | 17 | 76200 | 2.41 |
| XMR16-1 | XML16-1 | 1 | 2.75 | 1.375 | 1 | 1.875 | 4.125 | 1-14 | 2.125 | 17 | 76200 | 2.13 |
| XMR16-2 | XML16-2 | 1 | 2.75 | 1.375 | 1 | 1.875 | 4.125 | 1-12 | 2.125 | 17 | 76200 | 2.13 |
| XMR20 | XML20 | 1.25 | 2.75 | 1.375 | 1 | 1.795 | 4.125 | 1 1/4-12 | 2.125 | 34 | 46638 | 2.3 |
| XMR20-24 | XML20-24 | 1.25 | 2.75 | 1.093 | 0.937 | 1.795 | 4.125 | 1 1/2-12 | 2.25 | 14 | 138465 | 2.63 |
| XMR24 | XML24 | 1.5 | 2.75 | 1.093 | 0.937 | 2.155 | 4.125 | 1 1/2-12 | 2.25 | 14 | 79000 | 2.63 |
| XMR24-28 | XML24-28 | 1.5 | 3.5 | 1.312 | 1.125 | 2.155 | 5.375 | 1 3/4-12 | 3 | 13 | 119595 | 6.06 |
| XMR28 | XML28 | 1.75 | 3.5 | 1.312 | 1.125 | - | 5.375 | 1 3/4-12 | 3 | 13 | 82000 | 6.06 |
| XMR32 | XML32 | 2 | 5 | 1.75 | 1.5 | 2.875 | 8 | 2-12 | 4 | 12 | - | - |
| FEMALE ROD END RH. | FEMALE ROD END LH. | B | D | W | T | BALL | AF | N | CF | a° | STATIC | LBS |
| XFR3 | XFL3 | 0.19 | 0.625 | 0.312 | 0.25 | 0.437 | 1.062 | 10-32 | 0.562 | 13 | 3733 | 0.04 |
| XFR4 | XFL4 | 0.25 | 0.75 | 0.375 | 0.281 | 0.5 | 1.312 | 1/4-28 | 0.75 | 16 | 6190 | 0.06 |
| XFR5 | XFL5 | 0.3125 | 0.875 | 0.437 | 0.344 | 0.625 | 1.375 | 5/16-24 | 0.75 | 14 | 7639 | 0.09 |
| XFR6 | XFL6 | 0.375 | 1 | 0.5 | 0.406 | 0.719 | 1.625 | 3/8-24 | 0.937 | 12 | 9544 | 0.14 |
| XFR7 | XFL7 | 0.4375 | 1.125 | 0.562 | 0.437 | 0.812 | 1.812 | 7/16-20 | 1.062 | 14 | 10285 | 0.19 |
| XFR8 | XFL8 | 0.5 | 1.312 | 0.625 | 0.5 | 0.937 | 2.125 | 1/2-20 | 1.187 | 12 | 15336 | 0.31 |
| XFR10 | XFL10 | 0.625 | 1.5 | 0.75 | 0.562 | 1.125 | 2.5 | 5/8-18 | 1.5 | 16 | 17955 | 0.45 |
| XFR12 | XFL12 | 0.75 | 1.75 | 0.875 | 0.687 | 1.312 | 2.875 | 3/4-16 | 1.75 | 14 | 28081 | 0.69 |
| XFR14 | XFL14 | 0.875 | 2 | 0.875 | 0.765 | 1.375 | 3.375 | 7/8-14 | 1.875 | 7 | 45051 | 0.93 |
| XFR16 | XFL16 | 1 | 2.75 | 1.375 | 1 | 1.875 | 4.125 | 1 1/4-12 | 2.125 | 17 | 76200 | 2.58 |
| XFR16-1 | XFL16-1 | 1 | 2.75 | 1.375 | 1 | 1.875 | 4.125 | 1-14 | 2.125 | 17 | 76200 | 2.58 |
| XFR16-2 | XFL16-2 | 1 | 2.75 | 1.375 | 1 | 1.875 | 4.125 | 1-12 | 2.125 | 17 | 76200 | 2.58 |
