Steering and Suspension Linkages
Linkage rods and Heim-joint assemblies provide adjustable, serviceable connections for steering, suspension, and chassis systems. Match the joint type, thread, spacers, and alignment to the travel of the mechanism.
ROD END / HEIM JOINT
SYZ Machine Chromoly XMR XML Rod Ends Rótulas Heim Joints
✓ ISO 9001 Certified
✓ SGS Verified
✓ 26+ Years Factory
✓ OEM / ODM Ready
- Product Name: XM XF Rod Ends
- Thread: Both Right Hand & Left Hand; Male & Female
- Packaging Details: Individual Plastic Bag, with Thread Cover, and into Cartons.
- Brand Name: SYZ Machine
- Origin: Made-in-China
⚡ Typically responds within 24 hours
MOQ:50 pcs / model
Lead Time:7–15 days
Sample:Free (excl. freight)
Payment:T/T · PayPal · L/C
Overview
SYZ Machine Chromoly XMR XML Rod Ends Rótulas Heim Joints Overview

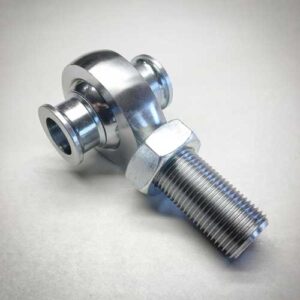

SYZ Machine Chromoly XMR XML Rod Ends Rótulas Heim Joints
Heavy duty chromoly rose joint
Left thread and right thread both are in stock
Optional matching accessories include locking nuts, hexagonal tube adapters, tapered tube adapters, high misalignment washers, and DOM tubes.
Available in full sizes
Heim Joint Details:
Body:4130 chromoly steel, heat treated, hard chrome plated
Ball:52100 bearing steel
Race: Nylon with PTFE
Use these for low-load applications. Steering shafts, light-duty track bars or suspension ends.
XMR XML Rod Ends Size Chart
| XM ROD END | B | D | W | T | BALL | AM | N | CM | a° | STATIC | APPROX | |
| RIGHT | LEFT | DIA. | DIA. | WIDTH | WIDTH | DIA. | LENGTH | THREAD | LENGTH | MIS. | RADIAL | WEIGHT |
| HAND | HAND | 0.0025 | 0.01 | 0.005 | REF. | REF. | 0.015 | UNF | 0.062 | ANGLE | LOAD | (LBS) |
| PART NO. | PART NO. | -0.0005 | -0.01 | -0.005 | -0.015 | 3A | -0.031 | REF. | (LBS) | |||
| XMR3 | XML3 | 0.1900 | 0.625 | 0.312 | 0.250 | 0.437 | 1.250 | 10-32 | 0.750 | 13 | 2,851 | 0.03 |
| XMR3-4 | XML3-4 | 0.1900 | 0.750 | 0.312 | 0.250 | 0.437 | 1.562 | 1/4-28 | 1.000 | 10 | 5,260 | 0.04 |
| XMR4 | XML4 | 0.2500 | 0.750 | 0.375 | 0.281 | 0.500 | 1.562 | 1/4-28 | 1.000 | 16 | 5,260 | 0.04 |
| XMR4-5 | XML4-5 | 0.2500 | 0.875 | 0.375 | 0.281 | 0.500 | 1.875 | 5/16-24 | 1.250 | 13 | 8,452 | 0.07 |
| XMR5 | XML5 | 0.3125 | 0.875 | 0.437 | 0.344 | 0.625 | 1.875 | 5/16-24 | 1.250 | 14 | 7,639 | 0.07 |
| XMR5-6 | XML5-6 | 0.3125 | 1.000 | 0.437 | 0.344 | 0.625 | 1.938 | 3/8-24 | 1.250 | 12 | 12,978 | 0.11 |
| XMR6 | XML6 | 0.3725 | 1.000 | 0.500 | 0.406 | 0.719 | 1.938 | 3/8-24 | 1.250 | 12 | 9,544 | 0.11 |
| XMR6-7 | XML6-7 | 0.3725 | 1.125 | 0.500 | 0.406 | 0.719 | 2.125 | 7/16-20 | 1.375 | 10 | 17,508 | 0.15 |
| XMR7 | XML7 | 0.4375 | 1.125 | 0.562 | 0.437 | 0.812 | 2.125 | 7/16-20 | 1.375 | 14 | 10,285 | 0.15 |
| XMR7-8 | XML7-8 | 0.4375 | 1.312 | 0.562 | 0.437 | 0.812 | 2.438 | 1/2-20 | 1.500 | 12 | 23,452 | 0.24 |
| XMR8 | XML8 | 0.5000 | 1.312 | 0.625 | 0.500 | 0.937 | 2.438 | 1/2-20 | 1.500 | 12 | 16,238 | 0.24 |
| XMR8-10 | XML8-10 | 0.5000 | 1.500 | 0.625 | 0.500 | 0.937 | 2.625 | 5/8-18 | 1.625 | 10 | 31,390 | 0.36 |
| XMR8-12 | XML8-12 | 0.5000 | 1.750 | 0.625 | 0.562 | 1.125 | 2.875 | 3/4-16 | 1.750 | 16 | 40,572 | 0.42 |
| XMR10 | XML10 | 0.6250 | 1.500 | 0.750 | 0.562 | 1.125 | 2.625 | 5/8-18 | 1.625 | 16 | 17,955 | 0.36 |
| XMR10-12 | XML10-12 | 0.6250 | 1.750 | 0.750 | 0.562 | 1.125 | 2.875 | 3/4-16 | 1.750 | 13 | 40,572 | 0.57 |
| XMR12 | XML12 | 0.7500 | 1.750 | 0.875 | 0.687 | 1.312 | 2.875 | 3/4-16 | 1.750 | 14 | 28,081 | 0.57 |
| XMR12-14 | XML12-14 | 0.7500 | 2.000 | 0.875 | 0.687 | 1.312 | 3.375 | 7/8-14 | 1.875 | 12 | 55,692 | 0.88 |
| XMR14 | XML14 | 0.8750 | 2.000 | 0.875 | 0.765 | 1.375 | 3.375 | 7/8-14 | 2.000 | 7 | 45,051 | 0.88 |
| XMR16 | XML16 | 1.0000 | 2.750 | 1.375 | 1.015 | 1.875 | 4.125 | 1 1/4-12 | 2.125 | 17 | 76,200 | 2.41 |
| XMR16-1 | XML16-1 | 1.0000 | 2.750 | 1.375 | 1.015 | 1.875 | 4.125 | 1-14 | 2.125 | 17 | 76,200 | 2.13 |
| XMR16-2 | XML16-2 | 1.0000 | 2.750 | 1.375 | 1.015 | 1.875 | 4.125 | 1-12 | 2.125 | 17 | 76,200 | 2.13 |
| XF ROD END | B | D | W | T | BALL | AF | N | CF | a° | STATIC | APPROX | |
| XFR3 | XFL3 | 0.1900 | 0.625 | 0.312 | 0.250 | 0.437 | 1.062 | 10-32 | 0.562 | 13 | 3,733 | 0.04 |
| XFR4 | XFL4 | 0.2500 | 0.750 | 0.375 | 0.281 | 0.500 | 1.312 | 1/4-28 | 0.750 | 16 | 6,190 | 0.06 |
| XFR5 | XFL5 | 0.3125 | 0.875 | 0.437 | 0.344 | 0.625 | 1.375 | 5/16-24 | 0.750 | 14 | 7,639 | 0.09 |
| XFR6 | XFL6 | 0.3750 | 1.000 | 0.500 | 0.406 | 0.719 | 1.625 | 3/8-24 | 0.937 | 12 | 9,544 | 0.14 |
| XFR7 | XFL7 | 0.4375 | 1.125 | 0.562 | 0.437 | 0.812 | 1.812 | 7/16-20 | 1.062 | 14 | 10,285 | 0.19 |
| XFR8 | XFL8 | 0.5000 | 1.312 | 0.625 | 0.500 | 0.937 | 2.125 | 1/2-20 | 1.187 | 12 | 15,336 | 0.31 |
| XFR10 | XFL10 | 0.6250 | 1.500 | 0.750 | 0.562 | 1.125 | 2.500 | 5/8-18 | 1.500 | 16 | 17,955 | 0.45 |
| XFR12 | XFL12 | 0.7500 | 1.750 | 0.875 | 0.687 | 1.312 | 2.875 | 3/4-16 | 1.750 | 14 | 28,081 | 0.69 |
| XFR16 | XFL16 | 1.0000 | 2.750 | 1.375 | 1.015 | 1.875 | 4.125 | 1 1/4-12 | 2.125 | 17 | 76,200 | 2.11 |
