Bore 0.7500 / 3/4-16 ThreadXMR12-C XML12-C 0.7500 3/4-16 Chromoly Steel Extended Shank Male Rod End
XM C Extended-Shank Chromoly Steel Rod Ends Product Overview

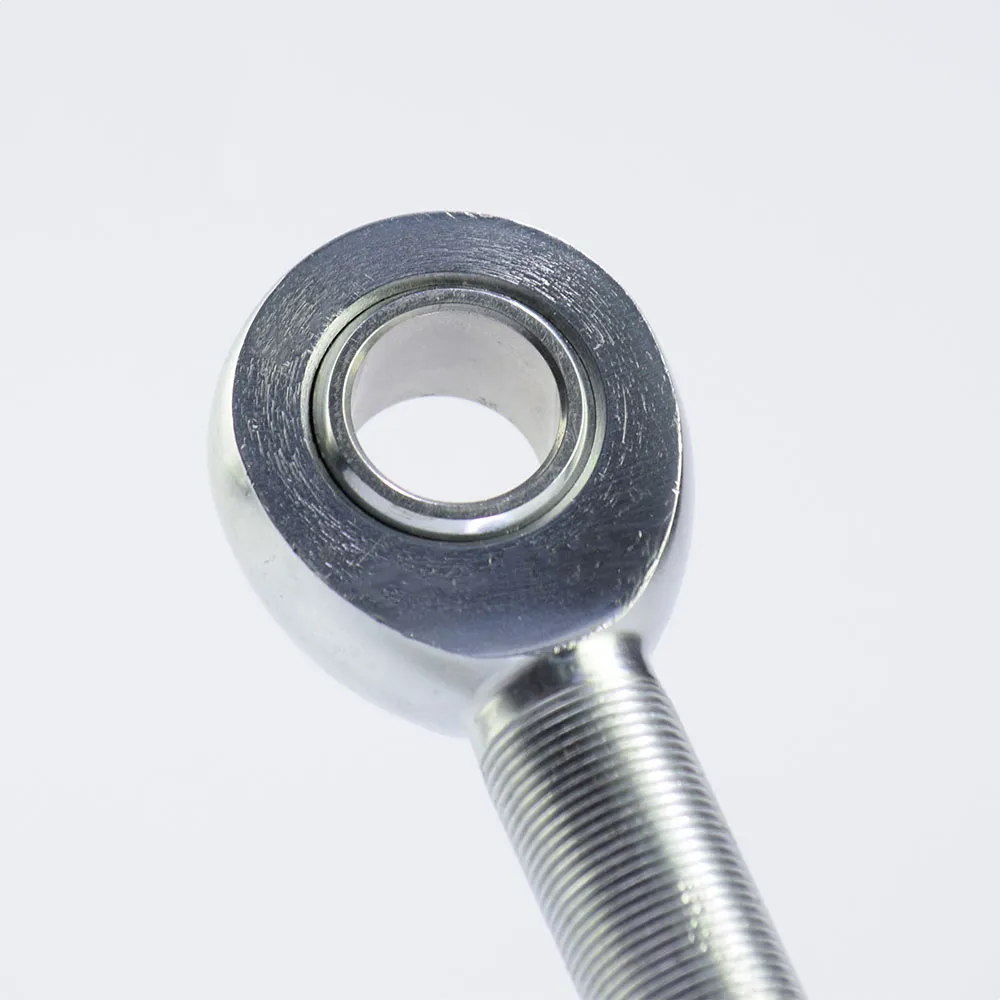

XMR12-C / XML12-C features a 0.7500″ bore (B) and 1.750″ body diameter (D), with a 1.312″ precision-ground 52100 steel ball running in a reinforced nylon/PTFE race. Overall body length (AM) is 5.04″, with an extended shank engagement depth (D) of 3.94″. Width (W) is 0.875″ and body thickness (T) is 0.687″. Approximate weight: 0.835 lbs.
Designed with an extra-long shank for deeper tie-rod thread engagement, this rod end with a 3/4-16 UNF 3A external thread accommodates ±14° misalignment and suits truck steering, maximum-load suspension, and extreme-duty assemblies requiring deep thread engagement. The 4130 chromoly steel body is heat treated and hard chrome plated for superior strength-to-weight ratio; the reinforced nylon/PTFE race is self-lubricating and self-sealing, requiring no maintenance.
Available in right-hand (XMR12-C) and left-hand (XML12-C) thread configurations. The extended shank (C designation) provides additional engagement depth compared to standard JMX rod ends, making it ideal for replacement applications where increased thread depth is required. Body is 4130 chromoly steel, heat treated and hard chrome plated.
XM C Extended-Shank Chromoly Steel Rod Ends Series — Full Size Range

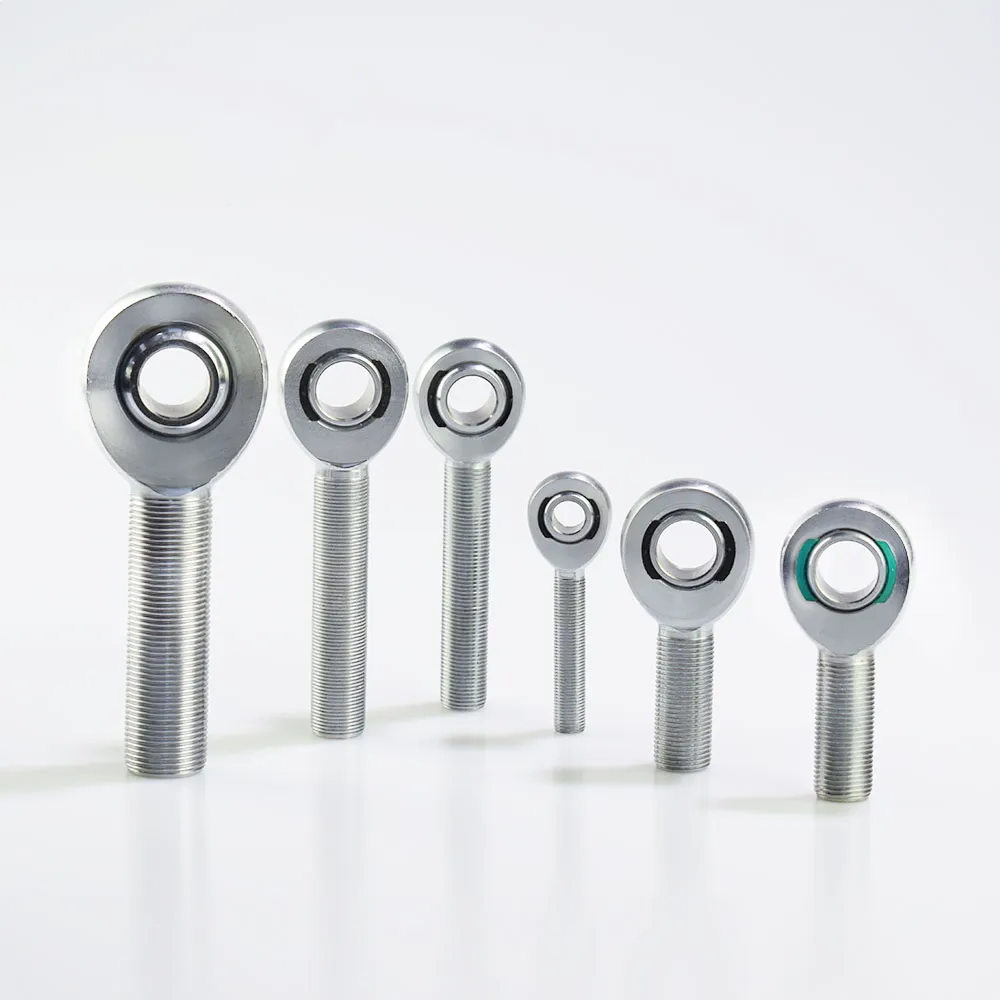

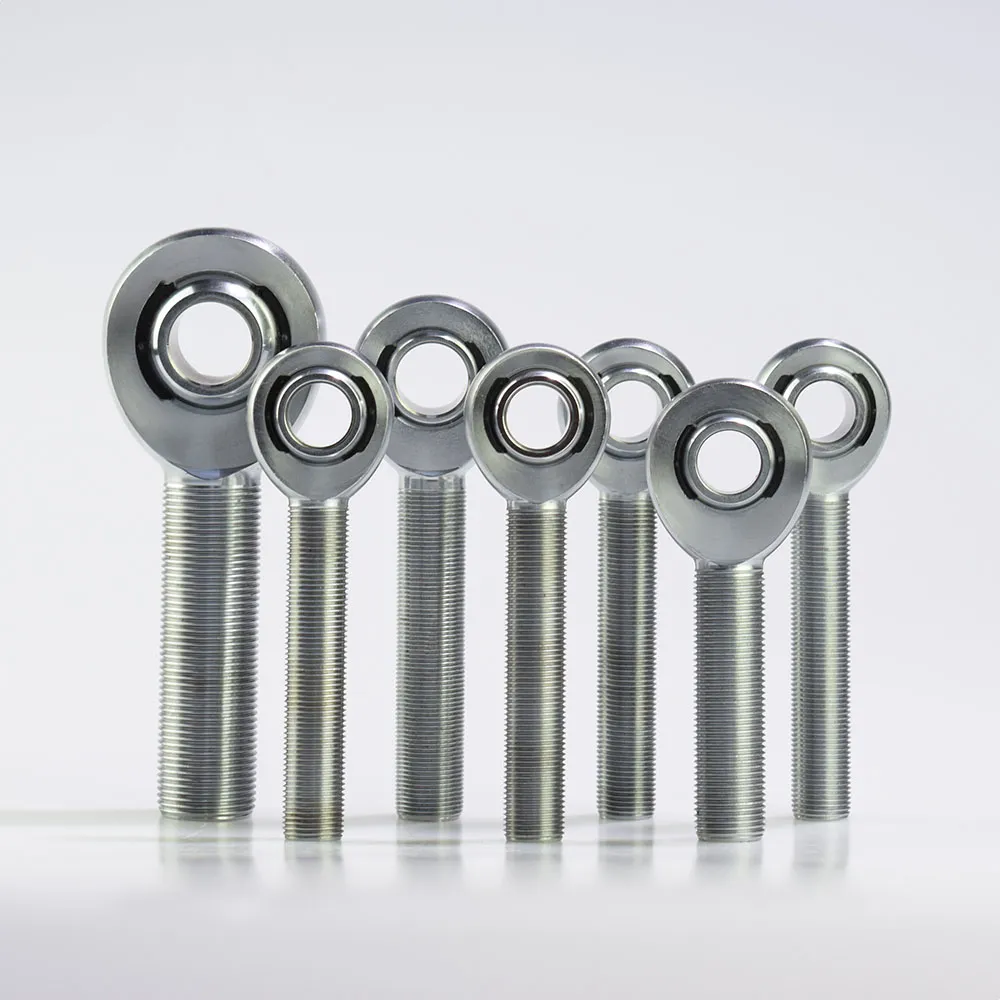

All available sizes in the XM C Extended-Shank Chromoly Steel Rod Ends series. Can’t find your size? Contact us for custom dimensions.

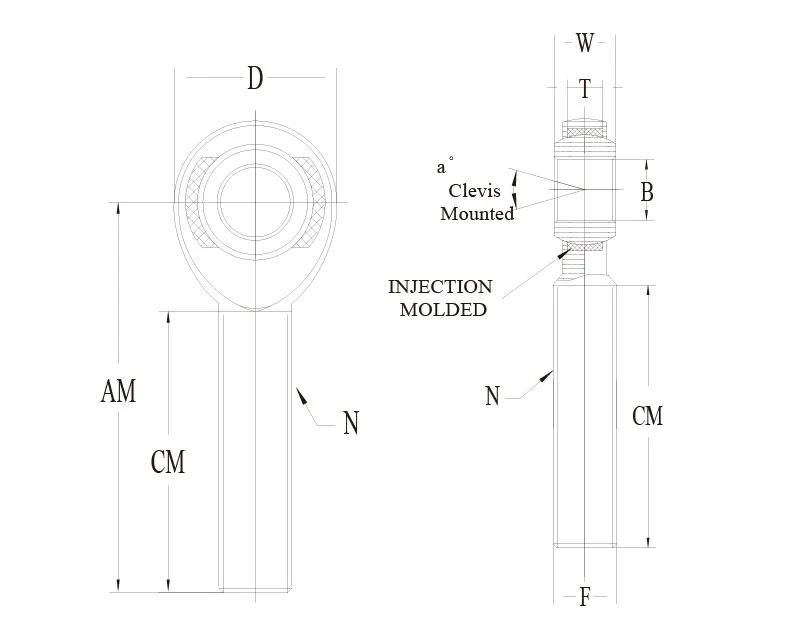

| RIGHT HAND PART NO. | LEFT HAND PART NO. | B DIA. +.0025 -.0005 | D DIA. +.005 -.005 | W WIDTH +.005 -.005 | T WIDTH +.005 -.005 | BALL DIA. REF. | AM LENGTH +.015 -.015 | N THREAD UNF 3A | D LENGTH +0.62 -0.31 | a° MIS. ANGLE REF. | APPROX WEIGHT (LBS) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XMR7-C | XML7-C | 0.4375 | 1.125 | 0.562 | 0.437 | 0.812 | 2.98 | 7/16-20 | 2.24 | 14 | 0.176 |
| XMR8-C | XML8-C | 0.5000 | 1.312 | 0.625 | 0.500 | 0.937 | 3.43 | 1/2-20 | 2.44 | 12 | 0.308 |
| XMR10-C | XML10-C | 0.6250 | 1.500 | 0.750 | 0.562 | 1.125 | 4.11 | 5/8-18 | 2.95 | 16 | 0.507 |
| XMR12-C | XML12-C | 0.7500 | 1.750 | 0.875 | 0.687 | 1.312 | 5.04 | 3/4-16 | 3.94 | 14 | 0.835 |
| XMR12-14-C | XML12-14-C | 0.7500 | 2.000 | 0.875 | 0.687 | 1.312 | 5.43 | 7/8-14 | 4.09 | 12 | 1.205 |
| XMR14-C | XML14-C | 0.8750 | 2.000 | 0.875 | 0.765 | 1.375 | 5.43 | 7/8-14 | 4.09 | 7 | 1.212 |
| XMR16-C | XML16-C | 1.0000 | 2.750 | 1.375 | 1.000 | 1.875 | 5.72 | 1 1/4-12 | 4.09 | 17 | 2.888 |
