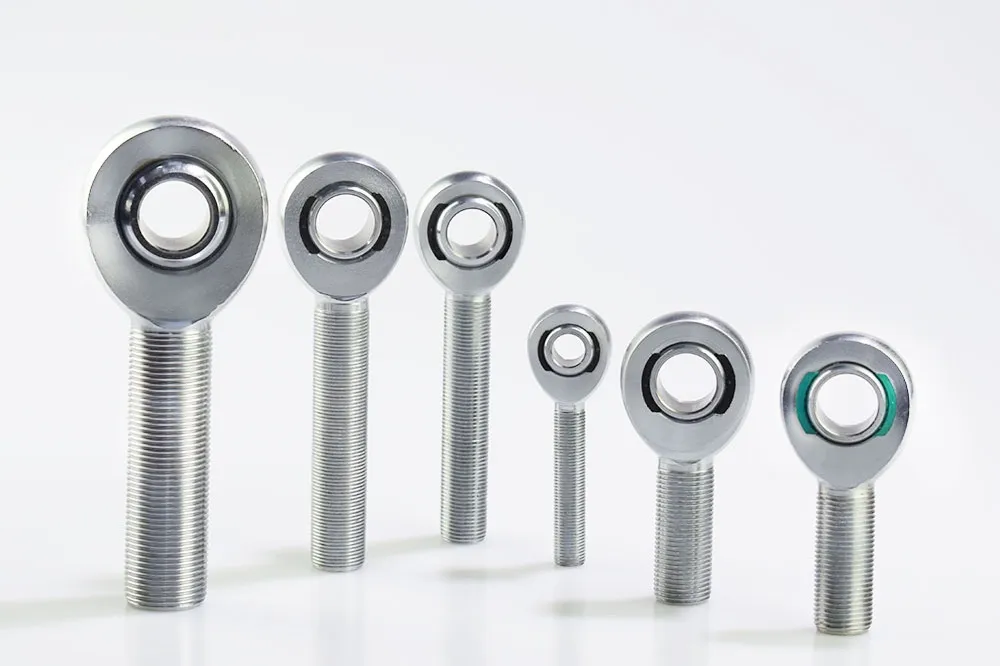

XM-C Series — Extended Shank Chromoly Rod Ends
XM-C Series
High-Strength Chromoly Extended Shank Rod Ends
Extra Long Stem · Heavy Duty Shank · Self-Lubricating Nylon Race
7
Male Rod End Choices
7
Extended Shank Sizes
Full Spec Range
Search by spec.

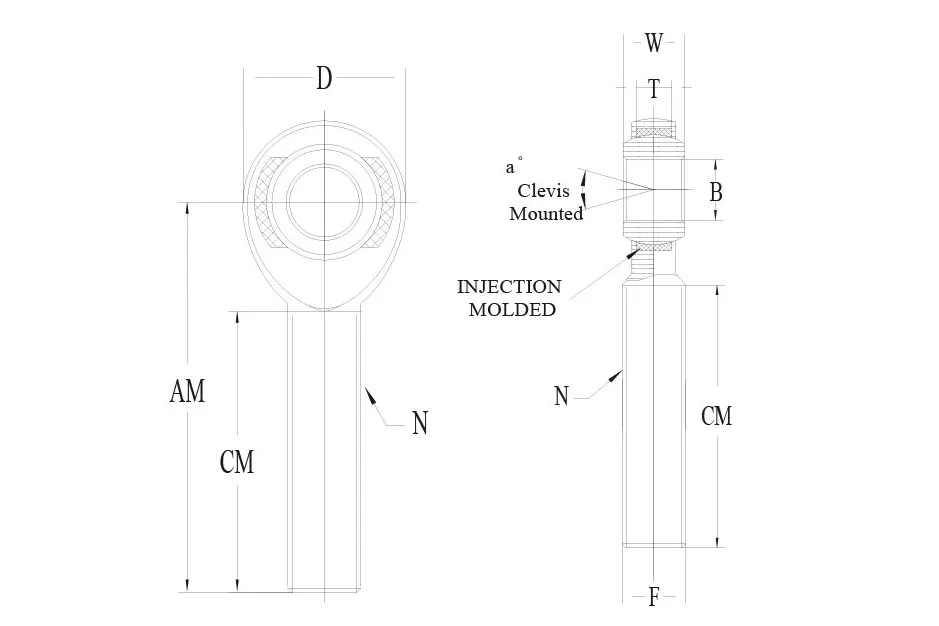

| Type | RH Part No. | LH Part No. | B | D | N | W | T | Ball | AM | D | A° | Weight | Qty | Action | Details |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XM-C Male | XMR7-C | XML7-C | 0.4375 | 1.125 | 7/16-20 | 0.562 | 0.437 | 0.812 | 2.98 | 2.24 | 14 | 0.176 | View details | ||
| XM-C Male | XMR8-C | XML8-C | 0.5000 | 1.312 | 1/2-20 | 0.625 | 0.500 | 0.937 | 3.43 | 2.44 | 12 | 0.308 | View details | ||
| XM-C Male | XMR10-C | XML10-C | 0.6250 | 1.500 | 5/8-18 | 0.750 | 0.562 | 1.125 | 4.11 | 2.95 | 16 | 0.507 | View details | ||
| XM-C Male | XMR12-C | XML12-C | 0.7500 | 1.750 | 3/4-16 | 0.875 | 0.687 | 1.312 | 5.04 | 3.94 | 14 | 0.835 | View details | ||
| XM-C Male | XMR12-14-C | XML12-14-C | 0.7500 | 2.000 | 7/8-14 | 0.875 | 0.687 | 1.312 | 5.43 | 4.09 | 12 | 1.205 | View details | ||
| XM-C Male | XMR14-C | XML14-C | 0.8750 | 2.000 | 7/8-14 | 0.875 | 0.765 | 1.375 | 5.43 | 4.09 | 7 | 1.212 | View details | ||
| XM-C Male | XMR16-C | XML16-C | 1.0000 | 2.750 | 1 1/4-12 | 1.375 | 1.000 | 1.875 | 5.72 | 4.09 | 17 | 2.888 | View details |
Technical Spec.
- Ball: 52100 bearing steel, precision ground, heat treated, and hard chrome plated.
- Race: Injection molded reinforced nylon with PTFE.
- Body: 4130 chromoly steel, heat treated, and hard chrome plated.
Notes
- Extended Adjustment Range: The long stem provides extra thread engagement and broader length adjustment in suspension and linkage fabrication.
- Heavy Duty Shank Design: Thread size is oversized relative to bore to improve bending resistance and fatigue strength.
- Self-Lubricating Construction: The PTFE-reinforced nylon race is maintenance-free and designed for dry operation.
- Suitable Applications: Commonly used in motorsports suspension links, steering drag links, heavy agricultural adjustment rods, and industrial linkage systems.
