SG / HMS Series

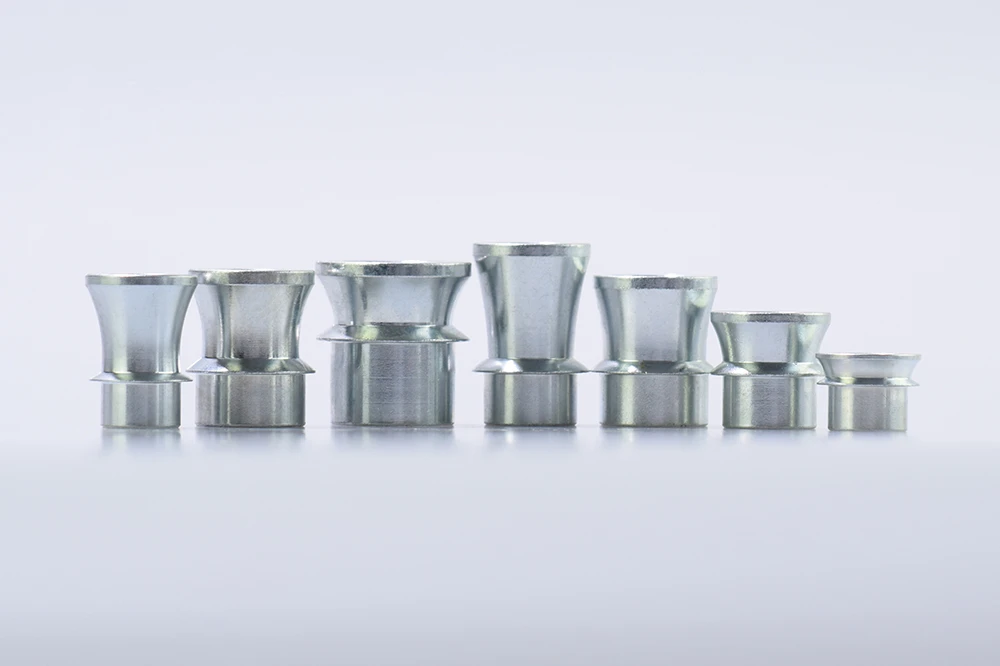

High Misalignment Rod End Spacer
Carbon Steel Zinc Plated · Stainless Optional · Misalignment Geometry Control
16
Available Sizes
2
Hero Views
Full Spec Range
Search by spec.
| Type | Part Number (Stainless) | Part Number (Carbon) | D | D2 | B | W | W2 | Mis. Angle a | Total Installed Width Ref. | Qty | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| ROD END SPACER SG HMS | SG10-84 | HMS10-84 | 0.624 | 0.825 | 0.500 | 0.250 | 0.360 | 54 | 1.250 | ||
| ROD END SPACER SG HMS | SG10-813 | HMS10-813 | 0.624 | 0.875 | 0.500 | 0.837 | 0.363 | 44 | 2.425 | ||
| ROD END SPACER SG HMS | SG12-84 | HMS12-84 | 0.749 | 0.850 | 0.500 | 0.250 | 0.423 | 56 | 1.375 | ||
| ROD END SPACER SG HMS | SG12-88 | HMS12-88 | 0.749 | 0.850 | 0.500 | 0.500 | 0.423 | 58 | 1.875 | ||
| ROD END SPACER SG HMS | SG12-108 | HMS12-108 | 0.749 | 0.950 | 0.625 | 0.500 | 0.423 | 52 | 1.875 | ||
| ROD END SPACER SG HMS | SG12-812 | HMS12-812 | 0.749 | 0.950 | 0.500 | 0.775 | 0.423 | 54 | 2.425 | ||
| ROD END SPACER SG HMS | SG12-816W | HMS12-816W | 0.749 | 0.875 | 0.500 | 1.000 | 0.423 | 54 | 2.875 | ||
| ROD END SPACER SG HMS | SG14-813 | HMS14-813 | 0.874 | 1.000 | 0.500 | 0.813 | 0.423 | 52 | 2.500 | ||
| ROD END SPACER SG HMS | SG14-1010 | HMS14-1010 | 0.874 | 1.062 | 0.625 | 0.625 | 0.423 | 44 | 2.125 | ||
| ROD END SPACER SG HMS | SG14-1012 | HMS14-1012 | 0.874 | 1.000 | 0.625 | 0.775 | 0.423 | 46 | 2.425 | ||
| ROD END SPACER SG HMS | SG16-910 | HMS16-910 | 0.999 | 1.250 | 0.563 | 0.625 | 0.673 | 66 | 2.625 | ||
| ROD END SPACER SG HMS | SG16-1010 | HMS16-1010 | 0.999 | 1.250 | 0.625 | 0.625 | 0.673 | 64 | 2.625 | ||
| ROD END SPACER SG HMS | SG16-1012 | HMS16-1012 | 0.999 | 1.250 | 0.625 | 0.750 | 0.673 | 60 | 2.875 | ||
| ROD END SPACER SG HMS | SG16-1013 | HMS16-1013 | 0.999 | 1.250 | 0.750 | 0.813 | 0.673 | 60 | 3.000 | ||
| ROD END SPACER SG HMS | SG16-1210 | HMS16-1210 | 0.999 | 1.250 | 0.750 | 0.625 | 0.673 | 60 | 2.625 | ||
| ROD END SPACER SG HMS | SG16-1212 | HMS16-1212 | 0.999 | 1.250 | 0.750 | 0.750 | 0.673 | 57 | 2.875 |
Technical Spec.
- Material: HMS versions use zinc plated carbon steel, while SG versions provide a stainless option for corrosion resistance.
- Function: High misalignment spacers are used to adapt rod end geometry and increase angular movement while controlling installed width.
- Selection: Start with D and B, then confirm D2, W, W2, misalignment angle, and installed width for the final joint package.
- Packaging: Spacer profiles affect articulation, overall width, and bolt support in fabricated suspension or linkage assemblies.
Notes
- Applications: Common in rod end suspension links, steering assemblies, and control arms needing higher articulation and corrected spacing.
- Material Choice: Carbon steel suits plated production hardware, while stainless options are useful where corrosion resistance matters.
- Customization: SYZ can review alternate dimensions and joint package requirements for OEM and fabrication programs.
