Uniball Cups

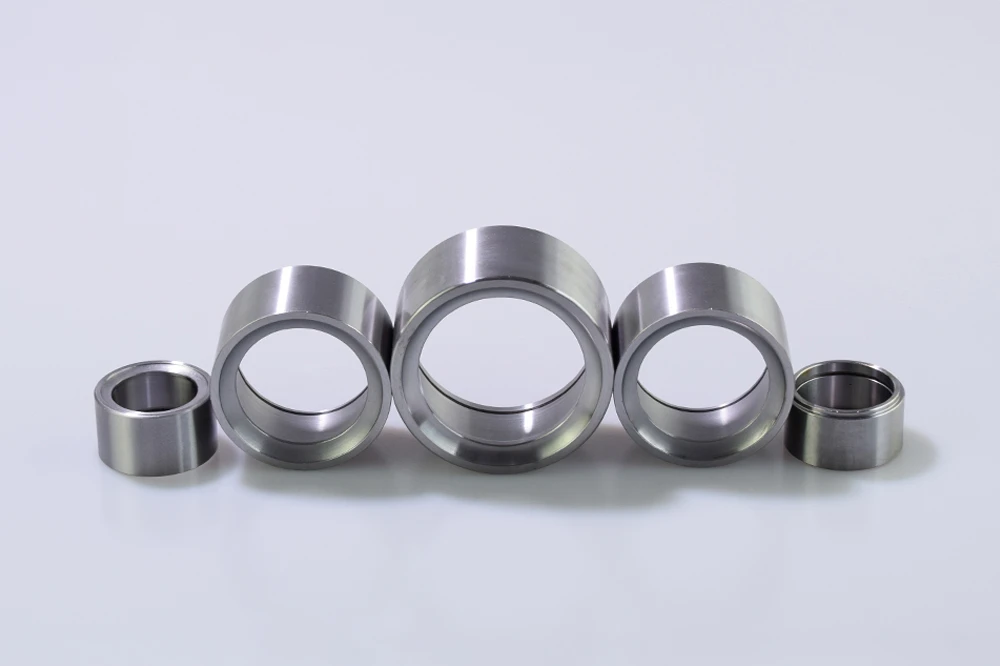

Weld-In 4130 Chromoly Steel Housings
4130 Chromoly Steel · Snap Ring Retainer Included · Precision Machined
10
Available Sizes
2
Hero Views
Full Spec Range
Search by spec.

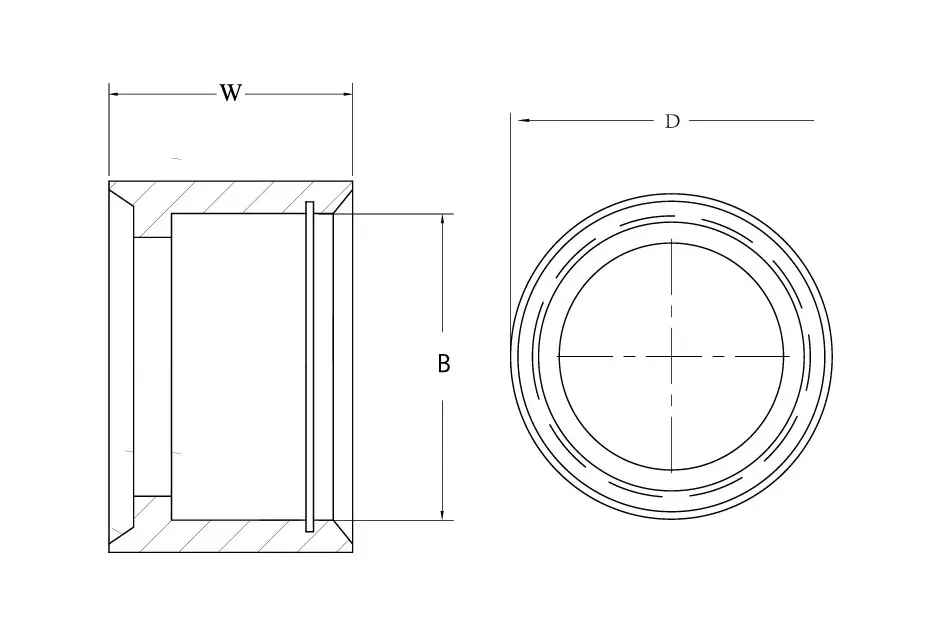

| Type | Part No. | B | D | W | Fit Bearings | Snap Ring Part No. | Qty | |
|---|---|---|---|---|---|---|---|---|
| UNIBALL CUP | UBC8 | 1.0000 | 1.250 | 0.750 | COM8, FKS8, COM8-SS | SR8 | ||
| UNIBALL CUP | UBC10 | 1.1875 | 1.500 | 0.875 | COM10, FKS10, COM10-SS | SR10 | ||
| UNIBALL CUP | UBC12 | 1.4375 | 1.750 | 1.000 | COM12, FKS12, COM12-SS | SR12 | ||
| UNIBALL CUP | UBC12W | 1.3750 | 1.750 | 1.000 | WPB12T | SR12W | ||
| UNIBALL CUP | UBC14W | 1.6250 | 2.000 | 1.250 | WPB14T | SR14W | ||
| UNIBALL CUP | UBC16W | 2.1250 | 2.625 | 1.500 | WPB16T | SR16W | ||
| UNIBALL CUP | UBC16W-1 | 2.1250 | 2.625 | 1.875 | WPB16T | SR16W | ||
| UNIBALL CUP | UBC16W-2 | 2.1250 | 2.625 | 2.500 | WPB16T | SR16W | ||
| UNIBALL CUP | UBC20 | 2.3750 | 2.875 | 1.500 | HCOM20 | SR20 | ||
| UNIBALL CUP | UBC24 | 2.7500 | 3.500 | 1.625 | HCOM24 | SR24 |
Technical Spec.
- Function: UBC series uniball cups are weld-in housings used to retain spherical bearings with a snap ring retainer.
- Selection: Start with B and D, then confirm W and the matching bearing family for the required housing package.
- Construction: Standard construction uses 4130 chromoly steel with retainer included for serviceable installation.
- Options: Mild steel and special sizes are available for production programs.
Notes
- Applications: Used in motorsport and fabricated suspension systems where weld-in spherical bearing retention is required.
- Fitment: Confirm bearing compatibility and snap ring part number before finalizing the housing selection.
- Customization: SYZ can review special widths, alternate materials, and OEM volume requirements.
