JOHNNY JOINT / 4 BAR ROD END

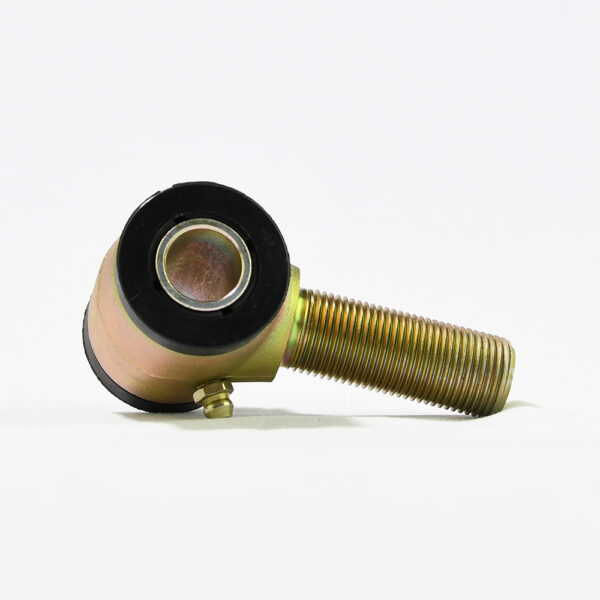

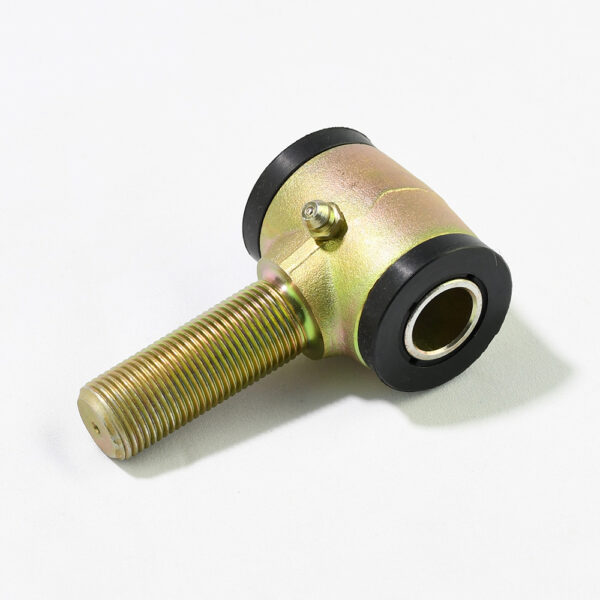

4 Link Bushings Suspension Rod End

Name: 4 Link Bushings Suspension Rod End
Brand: SYZ Rod Ends
Availability: InStock

✓ ISO 9001 Certified

✓ SGS Verified

✓ 26+ Years Factory

✓ OEM / ODM Ready

Poly Bushings and Jam Nut included
Thread:Right Hand(RH)/Left Hand(LH)
Size: 1-12, 1.25-12, 1/2-20, 3/4-16, 5/8-18, 7/8-14
Yellow or White Zinc Plated

Get a Quote →

⚡ Typically responds within 24 hours

MOQ:50 pcs / model

Lead Time:7–15 days

Sample:Free (excl. freight)

Payment:T/T · PayPal · L/C

Overview

4 Link Bushings Suspension Rod End Overview

Items: 4 Link Bushings Suspension Rod End

Poly Bushings and Jam Nut included
Thread:Right Hand(RH)/Left Hand(LH)
Yellow or White Zinc Plated

Custom Service Process:Select Similar Product — Confirm MOQ — Send Inquiry — Send your Drawings or Samples — Customization
Select product (If your product is not on our website, select a similar product) — Confirm the quantity you need meet up with our MOQ — Send inquiry with your Drawings or Samples — We will reply to you and confirm details — Send details to our factory and start customization

Forged 4 Bar Rod Ends

Thread	Description	Rod End Style	Material	Finish	Spec.
5/8-18 RH	Forged 4-Bar Rod Ends, 5/8-18 RH Thread	Solid	Carbon Steel	Zinc Plated	Overall Length: 3.69″ Overall width: 1.370″ Hole Diameter: 0.5″ Thread Pitch: 5/8″-18
5/8-18 LH	Forged 4-Bar Rod End, 5/8-18 LH Thread	Solid	Carbon Steel	Zinc Plated	Overall Length: 3.69″ Overall width: 1.370″ Rod end width: 1.050″ Rod end I.D.: 1.125″ Steel sleeve O.D.: 0.750″ Steel sleeve I.D.: 0.500″ Threaded shaft length: 1-7/8″ Thread Pitch: 5/8″-18
5/8-18 RH	Stainless Steel 4-Bar Rod Ends, 5/8-18 RH Thread	Solid	Stainless Steel	Polished	Overall Diameter: 1.5″ Overall width: 1.370″ Rod end width: 1.050″ Rod end I.D.: 1.125″ Steel sleeve O.D.: 0.750″ Steel sleeve I.D.: 0.500″ Threaded shaft length: 1-7/8″ Thread Pitch: 5/8″-18 Thread Length: 1.875″ Hole Diameter: 0.5″
5/8-18 LH	Stainless Steel 4-Bar Rod End, 5/8-18 LH Thread	Solid	Stainless Steel	Polished	Rod End Head Width: 1.37″ Overall Length: 3.60″ Overall Diameter: 1.5″ Center Hole to End of Shank: 2.875 Overall width: 1.370″ Rod end width: 1.050″ Rod end I.D.: 1.125″ Steel sleeve O.D.: 0.750″ Steel sleeve I.D.: 0.500″ Threaded shaft length: 1-7/8″ Thread Pitch: 5/8″-18 Thread Length: 1.91″ Hole Diameter: 0.5″
3/4-16 RH	Forged Stainless 4-Bar Rod End, 3/4-16 RH Thread	Solid	Stainless Steel	Polished	Thread Pitch: 3/4″-16 Thread Length: 1.63″ Hole Diameter: 0.625″ Overall Length: 3.65″ Overall Diameter: 1.5″ Center Hole to End of Shank: 2.75″
3/4-16 LH	Forged Stainless 4-Bar Rod End, 3/4-16 LH Thread	Solid	Stainless Steel	Polished	Thread Pitch: 3/4″-16 Thread Type: LH Male Thread Length: 1.75″ Hole Diameter: 0.625″ Overall Length: 3.68″ Overall Diameter: 1.5″ Center Hole to End of Shank: 2.75″
3/4-16 RH	Forged 4-Bar Rod End, 3/4-16 RH Thread	Solid	Carbon Steel	Zinc Plated	Thread Pitch: 3/4″-16 Thread Length: 2″ Hole Diameter: 0.625″ Overall Length: 3.75″ Center Hole to End of Shank: 3.00″
3/4-16 LH	Forged 4-Bar Rod End, 3/4-16 LH Thread	Solid	Carbon Steel	Zinc Plated	Thread Pitch: 3/4″-16 Thread Length: 2″ Hole Diameter: 0.625″ Overall Length: 3.75″ Overall Diameter: 1.55″ Center Hole to End of Shank: 3.00″
3/4-16 RH	Rod End Supply FBE12 Steel 4-Bar Rod End, 3/4-16 RH Thread, Straight	Spherical Bearing	Carbon Steel	Black Oxide	Overall Length: 3.84″ Overall Diameter: 1.63″ Center Hole to End of Shank: 3.00 Hole Diameter: 0.625″ Thread Pitch: 3/4″-16 Thread Length: 1.93″
3/4-16 RH	Plain Steel 4-Bar Rod End, 3/4-16 RH Thread	Spherical Bearing	Plain Steel	Black Oxide	Thread Pitch: 3/4″-16 Thread Length: 2.00″ Hole Diameter: 0.625″ Overall Diameter: 1.63″
11/16-18 RH	Forged 4-Bar Rod End, 11/16-18 RH Thread	Solid	Carbon Steel	Zinc Plated	Thread Pitch: 11/16″-18 Hole Diameter: 0.5″ Rod End Head Width: 1.4″ Overall Diameter: 1.47″
11/16-18 RH	Stainless Steel 4-Bar Rod End, 11/16-18 RH Thread	Solid	Stainless Steel	Polished	Thread Pitch: 11/16″-18 Hole Diameter: 0.5″
