ROD END / HEIM JOINT

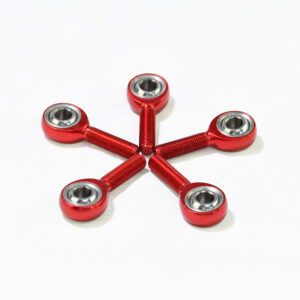

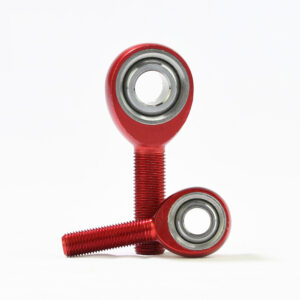

ALJM/ALJF 3-Piece Aircraft Aluminum Bearings Spherical Rod End

✓ ISO 9001 Certified
✓ SGS Verified
✓ 26+ Years Factory
✓ OEM / ODM Ready
3-Piece Precision, Aluminum, PTFE Lined Optional
Ball: 52100 Bearing Steel, Precision Ground, Heat Treated, Hard Chrome Plated
Race: Alloy Steel, PTFE Lined Optional, Zinc Plating Optional
Body: 7075-T6 Aircraft Aluminum, Color Anodized Red or Black, Other Color Available Type: Male/Female
Thread: Right/Left
Regular Size: Male Type from ALJM3T-ALJM12T/Female Type from ALJF3T-ALJF12T
All Dimension in Inch
Custom Option: Material/Color/Size/Stud Configurations
Get a Quote →
⚡ Typically responds within 24 hours
MOQ:50 pcs / model
Lead Time:7–15 days
Sample:Free (excl. freight)
Payment:T/T · PayPal · L/C
Overview

ALJM/ALJF 3-Piece Aircraft Aluminum Bearings Spherical Rod End Overview

Item: ALJM/ALJF 3-Piece Aircraft Aluminum Bearings Spherical Rod End

BALLRACEBODY
52100 BEARING STEELALLOY STEELALUMINUM
PRECISION GROUNDHEAT TREATEDCOLOR ANODIZED RED
HEAT TREATEDOTHER COLOR AVAILABLE
HARD CHROME PLATED

Type: Male/Female
Thread: Right/Left
Regular Size: Male Type from ALJM3T-ALJM12T/Female Type from ALJF3T-ALJF12T
All Dimension in Inch
Custom Option: Material/Color/Size/Stud Configurations
For The Male ALJM Rod End One, We Have More Stronger Pieces for Choice. The Size From ALJM5T-ALJM10-8T



aljm aljf rod end



ALJM and ALJF Rod End Size Chart

ALJM(T) ROD ENDBDWTBALLAMNCMa°STATICAPPROX
RIGHTLEFTDIA.DIA.WIDTHWIDTHDIA.LENGTHTHREADLENGTHMIS.RADIALWEIGHT
HANDHAND+0.0025+0.010+0.005REF.REF.+0.015UNF+0.062ANGLELOAD(LBS)
PART NO.PART NO.-0.0005-0.010-0.005-0.0153A-0.031REF.(LBS)
ALJMR3(T)ALJML3(T)0.19000.6250.3120.2500.4371.25010-320.750131,360 0.022
ALJMR4(T)ALJML4(T)0.25000.7500.3750.2810.5001.5621/4-281.000162,465 0.034
ALJMR5(T)ALJML5(T)0.31250.8750.4370.3440.6251.8755/16-241.250142,850 0.050
ALJMR6(T)ALJML6(T)0.37501.0000.5000.4060.7191.9383/8-241.250124,208 0.078
ALJMR7(T)ALJML7(T)0.43751.1250.5620.4370.8122.1257/16-201.375144,534 0.091
ALJMR8(T)ALJML8(T)0.50001.3120.6250.5000.9372.4381/2-201.500127,698 0.140
ALJMR8H(T)ALJML8H(T)0.50001.5000.6250.5000.9372.6251/2-201.5621210,150 0.140
ALJMR8-6(T)ALJML8-6(T)0.37501.3120.6250.5000.9372.4381/2-201.500127,698 0.140
ALJMR10(T)ALJML10(T)0.62501.5000.7500.5621.1252.6255/8-181.625168,516 0.240
ALJMR10H(T)ALJML10H(T)0.62501.7500.7500.5621.1252.6255/8-181.6251616,200 0.268
ALJMR12(T)ALJML12(T)0.75001.7500.8750.6871.3122.8753/4-161.7501413,319 0.300
ALJMR12H(T)ALJML12H(T)0.75002.0000.8750.6871.3123.0003/4-161.7501423,390 0.300
ALJF(T) ROD ENDBDWTBALLAFNCFa°STATICAPPROX
ALJFR3(T)ALJFL3(T)0.19000.6250.3120.2500.4371.06210-320.500131,360 0.022
ALJFR4(T)ALJFL4(T)0.25000.7500.3750.2810.5001.3121/4-280.687162,592 0.034
ALJFR5(T)ALJFL5(T)0.31250.8750.4370.3440.6251.3755/16-240.687142,890 0.050
ALJFR6(T)ALJFL6(T)0.37501.0000.5000.4060.7191.6253/8-240.812123,952 0.088
ALJFR7(T)ALJFL7(T)0.43751.1250.5620.4370.8121.8127/16-200.937144,534 0.135
ALJFR8(T)ALJFL8(T)0.50001.3120.6250.5000.9372.1251/2-201.062127,006 0.186
ALJFR10(T)ALJFL10(T)0.62501.5000.7500.5621.1252.5005/8-181.375168,516 0.278
ALJFR12(T)ALJFL12(T)0.75001.7500.8750.6871.3122.8753/4-161.5621413,319 0.414
