Steering and Suspension Linkages
Linkage rods and Heim-joint assemblies provide adjustable, serviceable connections for steering, suspension, and chassis systems. Match the joint type, thread, spacers, and alignment to the travel of the mechanism.
ROD END / HEIM JOINT

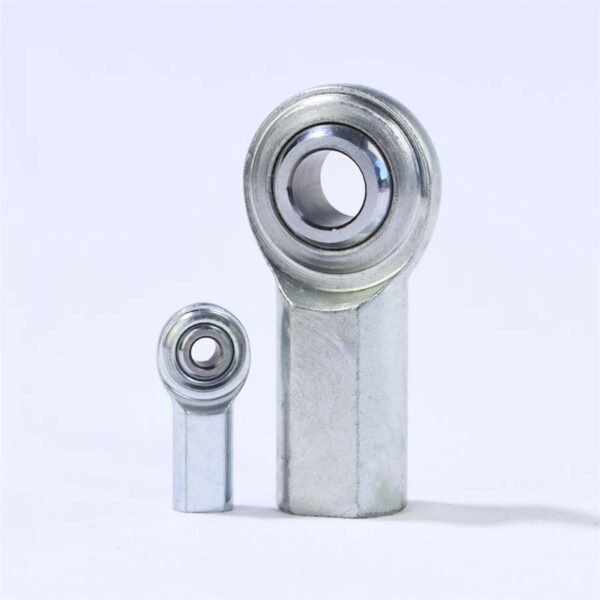

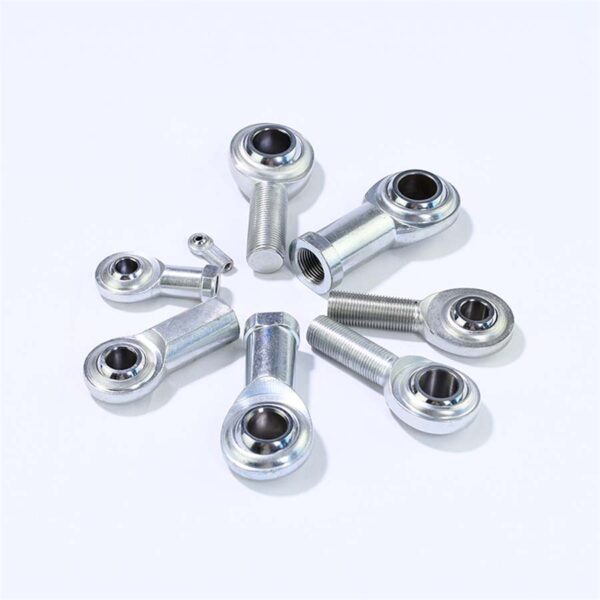

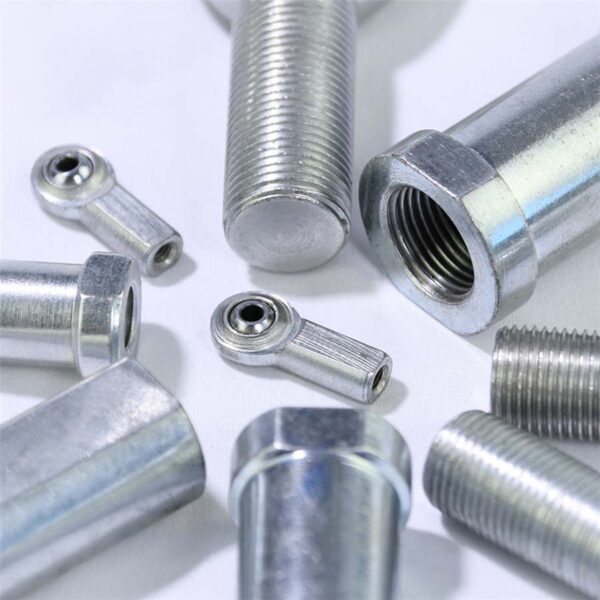

CM/CF Professional Manufacturer 2-Piece Bearings Spherical Rod End
✓ ISO 9001 Certified
✓ SGS Verified
✓ 26+ Years Factory
✓ OEM / ODM Ready
- Product Name: CM/CF Professional Manufacturer 2-Piece Bearings Spherical Rod End
- Thread: Both Right Hand & Left Hand; Male & Female
- Regular Size: Male Thread from CM2-CM16/Female Thread from CF2-CF12
- Inch Size and Metric Size Both Available
- Custom Option: Material/Size/Stud Configurations/Polishing
- Packaging Details: Individual Plastic Bag, with Thread Cover, and into Cartons.
- Brand Name: SYZ Machine
- Origin: Made-in-China
⚡ Typically responds within 24 hours
MOQ:50 pcs / model
Lead Time:7–15 days
Sample:Free (excl. freight)
Payment:T/T · PayPal · L/C
Overview
CM/CF Professional Manufacturer 2-Piece Bearings Spherical Rod End Overview
| BALL | BODY | ||||||
| 52100 BEARING STEEL | CARBON STEEL | ||||||
| PRECISION GROUND | HEAT TREATED | ||||||
| HEAT TREATED | SLIVER OR YELLOW ZINC PLATED | ||||||
| HARD CHROME PLATED | PTFE LINED OPTIONAL | ||||||
Type: Commercial/Industrial Rod Ends
Thread:Male/Female, Right/Left Hand
Regular Size: Male Thread from CM2-CM16/Female Thread from CF2-CF12
Inch Size and Metric Size Both Available
Custom Option:Material/Size/Plating/Stud Configurations
CM CF Rod Ends Size Chart
| CM(-) ROD END | B | D | W | T | BALL | AM | N | CM | a° | SAIC | APPROX | |
| RIGH | LEF | DIA. | DIA. | WIDH | REF. | DIA. | LENGH | HREAD | LENGH | MIS. | RADIAL | WEIGH |
| HAND | HAND | +0.0025 | +0.010 | +0.005 | REF. | +0.015 | UNF | +0.062 | ANGLE | LOAD | (LBS) | |
| PAR NO. | PAR NO. | -0.0005 | -0.010 | -0.005 | -0.015 | 3A | -0.031 | REF. | (LBS) | |||
| CMR2(T) | CML2(T) | 0.1250 | 0.500 | 0.250 | 0.175 | 0.312 | 0.937 | 6-32 | 0.562 | 22 | 700 | 0.01 |
| CMR3(T) | CML3(T) | 0.1900 | 0.625 | 0.312 | 0.234 | 0.437 | 1.250 | 10-32 | 0.750 | 20 | 1,558 | 0.03 |
| CMR3-4(T) | CML3-4(T) | 0.1900 | 0.750 | 0.312 | 0.234 | 0.437 | 1.562 | 1/4-28 | 1.000 | 20 | 3,435 | 0.04 |
| CMR4(T) | CML4(T) | 0.2500 | 0.750 | 0.375 | 0.250 | 0.500 | 1.562 | 1/4-28 | 1.000 | 27 | 2,835 | 0.04 |
| CMR4-5(T) | CML4-5(T) | 0.2500 | 0.875 | 0.375 | 0.250 | 0.500 | 1.875 | 5/16-24 | ` | 27 | 5,534 | 0.06 |
| CMR5(T) | CML5(T) | 0.3125 | 0.875 | 0.437 | 0.312 | 0.625 | 1.875 | 5/16-24 | 1.250 | 22 | 4,517 | 0.07 |
| CMR5-6(T) | CML5-6(T) | 0.3125 | 1.000 | 0.437 | 0.312 | 0.625 | 1.938 | 3/8-24 | 1.250 | 22 | 6,853 | 0.10 |
| CMR6(T) | CML6(T) | 0.3750 | 1.000 | 0.500 | 0.359 | 0.719 | 1.938 | 3/8-24 | 1.250 | 22 | 6,323 | 0.11 |
| CMR6-103(T) | CML6-103(T) | 0.3750 | 1.125 | 0.625 | 0.037 | 0.719 | 1.938 | 3/8-24 | 1.211 | 40 | 6,162 | – |
| CMR6-7(T) | CML6-7(T) | 0.3750 | 1.125 | 0.500 | 0.359 | 0.719 | 2.125 | 7/16-20 | 1.375 | 22 | 8,278 | 0.14 |
| CMR6-8(T) | CML6-8(T) | 0.3750 | 1.125 | 0.500 | 0.359 | 0.719 | 2.125 | 1/2-20 | 1.375 | 22 | 8,278 | 0.17 |
| CMR7(T) | CML7(T) | 0.4375 | 1.125 | 0.562 | 0.406 | 0.812 | 2.125 | 7/16-20 | 1.375 | 21 | 7,897 | 0.15 |
| CMR7-6(T) | CML7-6(T) | 0.4375 | 1.125 | 0.562 | 0.406 | 0.812 | 2.125 | 3/8-24 | 1.375 | 21 | 7,897 | 0.13 |
| CMR7-8(T) | CML7-8(T) | 0.4375 | 1.312 | 0.562 | 0.406 | 0.812 | 2.438 | 1/2-20 | 1.500 | 21 | 11,191 | 0.22 |
| CMR8(T) | CML8(T) | 0.5000 | 1.312 | 0.625 | 0.453 | 0.937 | 2.438 | 1/2-20 | 1.500 | 20 | 10,046 | 0.24 |
| CMR8-102(T) | CML8-102(T) | 0.5000 | 1.312 | 1.150 | 0.453 | 0.937 | 2.438 | 1/2-20 | 1.500 | 26 | 10,046 | 0.24 |
| CMR8-10(T) | CML8-10(T) | 0.5000 | 1.500 | 0.625 | 0.453 | 0.937 | 2.625 | 5/8-18 | 1.625 | 20 | 13,729 | 0.34 |
| CMR8-12(T) | CML8-12(T) | 0.5000 | 1.500 | 0.750 | 0.484 | 1.125 | 2.625 | 3/4-16 | 1.625 | 26 | 11,385 | 0.42 |
| CMR10(T) | CML10(T) | 0.6250 | 1.500 | 0.750 | 0.484 | 1.125 | 2.625 | 5/8-18 | 1.625 | 26 | 11,385 | 0.36 |
| CMR10-12(T) | CML10-12(T) | 0.6250 | 1.750 | 0.750 | 0.484 | 1.125 | 2.875 | 3/4-16 | 1.750 | 26 | 16,922 | 0.51 |
| CMR12(T) | CML12(T) | 0.7500 | 1.750 | 0.875 | 0.593 | 1.312 | 2.875 | 3/4-16 | 1.750 | 24 | 15,894 | 0.57 |
| CMR12-757(T) | CML12-757(T) | 0.7570 | 1.750 | 0.875 | 0.593 | 1.312 | 2.875 | 3/4-16 | 1.750 | 24 | 15,894 | 0.56 |
| CF(-) ROD END | B | D | W | T | BALL | AF | N | CF | a° | SAIC | APPROX | |
| CFR2(T) | CFL2(T) | 0.1250 | 0.500 | 0.250 | 0.175 | 0.312 | 0.812 | 6-32 | 0.437 | 22 | 1,510 | 0.02 |
| CFR3(T) | CFL3(T) | 0.1900 | 0.625 | 0.312 | 0.234 | 0.437 | 1.062 | 10-32 | 0.500 | 20 | 2,079 | 0.04 |
| CFR3-4(T) | CFL3-4(T) | 0.1900 | 0.750 | 0.312 | 0.234 | 0.437 | 1.312 | 1/4-28 | 0.687 | 20 | 4,197 | 0.05 |
| CFR4(T) | CFL4(T) | 0.2500 | 0.750 | 0.375 | 0.250 | 0.500 | 1.312 | 1/4-28 | 0.687 | 27 | 3,820 | 0.05 |
| CFR5(T) | CFL5(T) | 0.3125 | 0.875 | 0.437 | 0.312 | 0.625 | 1.375 | 5/16-24 | 0.687 | 22 | 5,110 | 0.08 |
| CFR5-6(T) | CFL5-6(T) | 0.3125 | 1.000 | 0.437 | 0.359 | 0.625 | 1.625 | 3/8-24 | 0.812 | 22 | 6,323 | 0.1 |
| CFR6(T) | CFL6(T) | 0.3750 | 1.000 | 0.500 | 0.359 | 0.719 | 1.625 | 3/8-24 | 0.812 | 22 | 6,323 | 0.13 |
| CFR7(T) | CFL7(T) | 0.4375 | 1.125 | 0.562 | 0.406 | 0.812 | 1.812 | 7/16-20 | 0.937 | 21 | 7,897 | 0.18 |
| CFR8(T) | CFL8(T) | 0.5000 | 1.312 | 0.625 | 0.453 | 0.937 | 2.125 | 1/2-20 | 1.062 | 20 | 10,046 | 0.29 |
| CFR10(T) | CFL10(T) | 0.6250 | 1.500 | 0.750 | 0.484 | 1.125 | 2.500 | 5/8-18 | 1.375 | 26 | 11,385 | 0.43 |
| CFR12(T) | CFL12(T) | 0.7500 | 1.750 | 0.875 | 0.593 | 1.312 | 2.875 | 3/4-16 | 1.562 | 24 | 15,894 | 0.65 |
Custom Service Process:Select Similar Product — Confirm MOQ — Send Inquiry — Send your Drawings or Samples — Customization
Select product (If your product is not on our website, select a similar product) — Confirm the quantity you need meet up with our MOQ — Send inquiry with your Drawings or Samples — We will reply to you and confirm details — Send details to our factory and start customization
Hot Selling Products
Quality Control
Every Unit Inspected Before Shipment
Raw Material Inspection
Material certifications verified before machining and assembly begin.
Dimensional Check
Critical dimensions are checked against drawing or sample requirements.
Surface Inspection
Visual inspection confirms finish quality, burr removal, and assembly cleanliness.
Batch Documentation
Inspection reports and production traceability can be provided on request.
