Steering and Suspension Linkages
Linkage rods and Heim-joint assemblies provide adjustable, serviceable connections for steering, suspension, and chassis systems. Match the joint type, thread, spacers, and alignment to the travel of the mechanism.
ROD END / HEIM JOINT

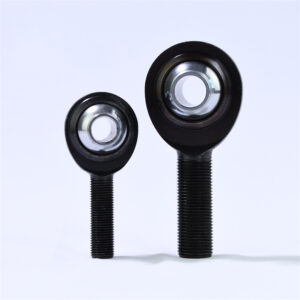

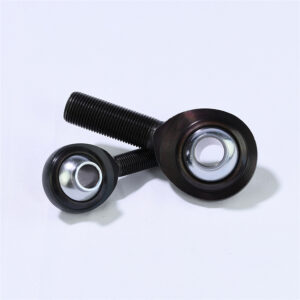

Black Oxide Coated 4130 Chromoly Steel High Misalignment Heim Joint
✓ ISO 9001 Certified
✓ SGS Verified
✓ 26+ Years Factory
✓ OEM / ODM Ready
- 2 Piece, Alloy Steel, High Misalignment, Black Oxide, Teflon Lined
Ball: 52100 Bearing Steel,Precision Ground, Heat Treated,Hard Chrome Plated, High Misalignment
Body:4130 Chromoly Steel, Heat Treated, Black Oxide Coated, PTFE LinedType:Male/Female
Thread:Right/Left
Regular Size: Male Type from PCYM6T-PCYM12T/Female Type from PCYM6T-PCYM12T
Inch Size Available
Custom Option:Material/Size
⚡ Typically responds within 24 hours
MOQ:50 pcs / model
Lead Time:7–15 days
Sample:Free (excl. freight)
Payment:T/T · PayPal · L/C
Overview
Black Oxide Coated 4130 Chromoly Steel High Misalignment Heim Joint Overview
Item: Black Oxide Coated 4130 Chromoly Steel High Misalignment Heim Joint
| BALL | BODY | |||||
| 52100 BEARING STEEL | 4130 CHROMOLY STEEL | |||||
| HIGH MISALIGNMENT | HEAT TREATED | |||||
| HEAT TREATED | BLACK OXIDE COATED | |||||
| HARD CHROME PLATED | PTFE LINED | |||||
Type:Male/Female
Thread:Right/Left
Regular Size: Male Type from PCYM6T-PCYM12T/Female Type from PCYM6T-PCYM12T
Inch Size Available
Custom Option:Material/Size

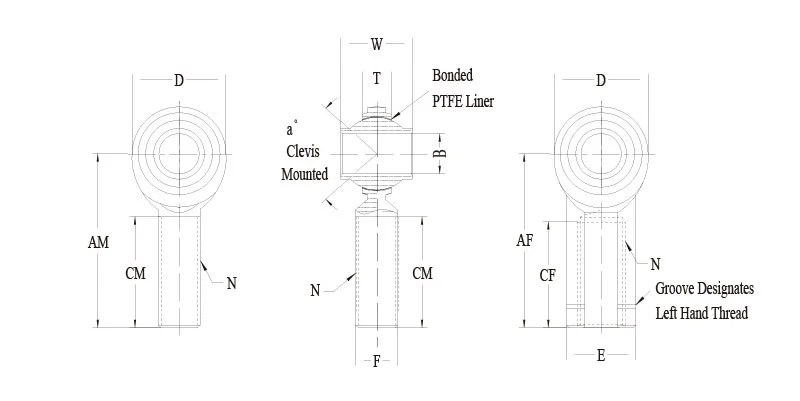

PCYM and PCYF Rod Ends Size Chart
| PCYM-T ROD END | B | D | W | T | AM | N | CM | a° | STATIC | APPROX | |
| RIGHT | LEFT | DIA. | DIA. | WIDTH | REF. | LENGTH | THREAD | LENGTH | MIS. | RADIAL | WEIGHT |
| HAND | HAND | +0.0025 | +0.010 | +0.005 | +0.015 | UNF | +0.062 | ANGLE | LOAD | (LBS) | |
| PART NO. | PART NO. | -0.0005 | -0.010 | -0.005 | -0.015 | 3A | -0.031 | REF. | (LBS) | ||
| PCYMR6T | PCYML6T | 0.3750 | 1.125 | 0.875 | – | 2.125 | 3/8-24 | 1.375 | 55 | 11,050 | 0.14 |
| PCYMR7T | PCYML7T | 0.4375 | 1.312 | 1.000 | – | 2.438 | 7/16-20 | 1.500 | 58 | 14,449 | 0.22 |
| PCYMR8T | PCYML8T | 0.5000 | 1.500 | 1.250 | – | 2.625 | 1/2-20 | 1.625 | 65 | 16,240 | 0.33 |
| PCYMR8-10T | PCYML8-10T | 0.5000 | 1.750 | 1.250 | – | 2.875 | 5/8-18 | 1.750 | 65 | 24,158 | 0.44 |
| PCYMR10T | PCYML10T | 0.6250 | 1.750 | 1.375 | – | 2.875 | 5/8-18 | 1.750 | 64 | 21,219 | 0.51 |
| PCYMR10-12T | PCYML10-12T | 0.6250 | 2.000 | 1.375 | – | 3.375 | 3/4-16 | 2.000 | 64 | 30,290 | 0.68 |
| PCYMR12T | PCYML12T | 0.7500 | 2.000 | 1.500 | – | 3.375 | 3/4-16 | 2.000 | 61 | 29,127 | 0.79 |
| PCYF-T ROD END | B | D | W | T | AF | N | CF | a° | STATIC | APPROX | |
| PCYFR6T | PCYFL6T | 0.3750 | 1.125 | 0.875 | – | 2.125 | 3/8-24 | 1.062 | 55 | 11,050 | 0.20 |
| PCYFR8T | PCYFL8T | 0.5000 | 1.500 | 1.250 | – | 2.625 | 1/2-20 | 1.375 | 65 | 16,240 | 0.43 |
| PCYFR10T | PCYFL10T | 0.6250 | 1.750 | 1.375 | – | 2.875 | 5/8-18 | 1.562 | 64 | 21,219 | 0.57 |
| PCYFR12T | PCYFL12T | 0.7500 | 2.000 | 1.500 | – | 3.375 | 3/4-16 | 1.785 | 61 | 29,127 | 0.84 |
