JM-M/JF-M Metric Size 3-Piece Carbon Steel Rod Ends

Name: JM-M/JF-M Metric Size 3-Piece Carbon Steel Rod Ends
Brand: SYZ Rod Ends
Availability: InStock

✓ ISO 9001 Certified

✓ SGS Verified

✓ 26+ Years Factory

✓ OEM / ODM Ready

3-Piece Precision, Carbon Steel, PTFE Lined Optional Ball:52100 Bearing Steel, Precision Ground, Heat Treated, Hard Chrome Plated Race: Alloy Steel. PTFE Lined Optional Body: Carbon Steel, Yellow Zinc Plated Type: Male/Female Thread: Right/Left Regular Size: Male Type from JMR5M-JMR30M/Female Type from JFR5M-JFR30M Inch Size and Metric Size Both Available

Get a Quote →

⚡ Typically responds within 24 hours

MOQ:50 pcs / model

Lead Time:7–15 days

Sample:Free (excl. freight)

Payment:T/T · PayPal · L/C

Overview

JM-M/JF-M Metric Size 3-Piece Carbon Steel Rod Ends Overview

Item: JM-M/JF-M Metric Size 3-Piece Carbon Steel Rod Ends

BALL	RACE	BODY
52100 BEARING STEEL	ALLOY STEEL	CARBON STEEL
PRECISION GROUND		YELLOW ZINC PLATED
HEAT TREATED
HARD CHROME PLATED

Type:Male/Female
Thread:Right/Left
Regular Size: Male Type from JMR5M-JMR30M/Female Type from JFR5M-JFR30M
Inch Size and Metric Size Both Available
Custom Option:Material/Size/Stud Configurations

JMM-JFM Metric Rod Ends

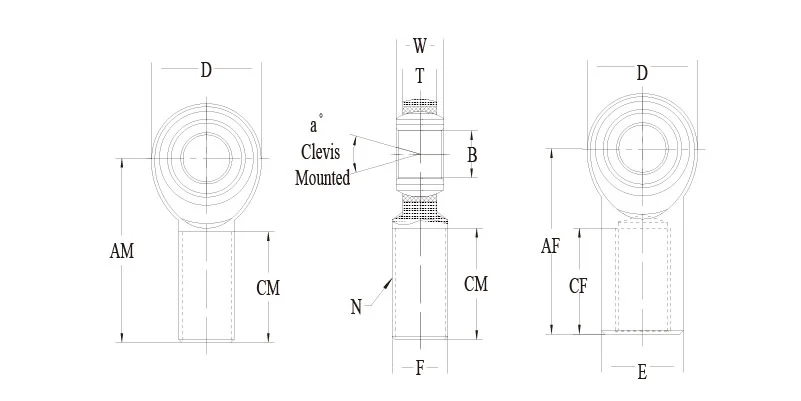

JM-M and JF-M Metric Rod End Size Chart
Chart Dimensions in MM

JM-M ROD END		B	D	W	T	BALL	AM	N	CM	a°	STATIC	APPROX
RIGHT	LEFT	DIA.	DIA.	WIDTH	WIDTH	DIA.	LENGTH	THREAD	LENGTH	MIS.	RADIAL	WEIGHT
HAND	HAND	+0.065	+0.38	+0.12	+0.13	REF.	+0.4	Metric	+1.00	ANGLE	LOAD	(GRAMS)
PART NO.	PART NO.	-0.013	-0.38	-0.012	-0.13	REF.	-0.4	Metric	-1.00	REF.	(LBS)
JMR5M	JML5M	5	16	8	6.25	11.10	33	M5 X 0.8	20	14	5,170	13
JMR6M	JML6M	6	19	9	7.00	12.70	36	M6 X 1.0	22	13	7,295	18
JMR8MF	JML8MF	8	22	12	8.75	15.88	42	M8 X 1.0	25	18	13,595	31
JMR8M	JML8M	8	22	12	8.75	15.88	42	M8 X 1.25	25	18	13,595	31
JMR10M	JML10M	10	27	14	10.50	19.05	48	M10 X 1.5	29	17	20,605	68
JMR12M	JML12M	12	30	16	12.00	22.23	54	M12X1.75	33	17	18,215	78
JMR14M	JML14M	14	35	19	13.50	25.40	60	M14 X 2.0	36	21	29,840	118
JMR16M	JML16M	16	38	21	14.25	28.58	66	M16 X 2.0	40	23	32,225	173
JMR20M	JML20M	20	46	25	18.00	34.93	78	M20 X 1.5	47	20	50,952	290

JF-M ROD END		B	D	W	T	BALL	AF	N	CF	a°	STATIC	APPROX
JFR5M	JFL5M	5	16	8	6.25	11.10	33	M5 X 0.8	14	14	5,170	13
JFR6M	JFL6M	6	19	9	7.00	12.70	36	M6 X 1.0	14	13	7,295	18
JFR8MF	JFL8MF	8	22	12	8.75	15.88	42	M8 X 1.0	17	18	13,595	31
JFR8M	JFL8M	8	22	12	8.75	15.88	42	M8 X 1.25	17	18	13,595	31
JFR10M	JFL10M	10	27	14	10.50	19.05	48	M10 X 1.5	21	17	20,605	68
JFR12M	JFL12M	12	30	16	12.00	22.23	54	M12X1.75	24	17	18,215	78
JFR14M	JFL14M	14	35	19	13.50	25.40	60	M14 X 2.0	27	21	29,840	118
JFR16M	JFL16M	16	38	21	14.25	28.58	66	M16 X 2.0	33	23	32,225	173
JMR20M	JML20M	20	46	25	18.00	34.93	77	M20 X 1.5	40	20	50,952	290
