ALJM/ALJF 3-Piece Aircraft Aluminum Bearings Spherical Rod End
- 3-Piece Precision, Aluminum, PTFE Lined Optional
Ball: 52100 Bearing Steel, Precision Ground, Heat Treated, Hard Chrome Plated
Race: Alloy Steel, PTFE Lined Optional, Zinc Plating Optional
Body: 7075-T6 Aircraft Aluminum, Color Anodized Red or Black, Other Color Available Type: Male/Female
Thread: Right/Left
Regular Size: Male Type from ALJM3T-ALJM12T/Female Type from ALJF3T-ALJF12T
All Dimension in Inch
Custom Option: Material/Color/Size/Stud Configurations
ALJM/ALJF 3-Piece Aircraft Aluminum Bearings Spherical Rod End Overview
Item: ALJM/ALJF 3-Piece Aircraft Aluminum Bearings Spherical Rod End
| BALL | RACE | BODY | ||||||
| 52100 BEARING STEEL | ALLOY STEEL | ALUMINUM | ||||||
| PRECISION GROUND | HEAT TREATED | COLOR ANODIZED RED | ||||||
| HEAT TREATED | OTHER COLOR AVAILABLE | |||||||
| HARD CHROME PLATED |
Type: Male/Female
Thread: Right/Left
Regular Size: Male Type from ALJM3T-ALJM12T/Female Type from ALJF3T-ALJF12T
All Dimension in Inch
Custom Option: Material/Color/Size/Stud Configurations
For The Male ALJM Rod End One, We Have More Stronger Pieces for Choice. The Size From ALJM5T-ALJM10-8T

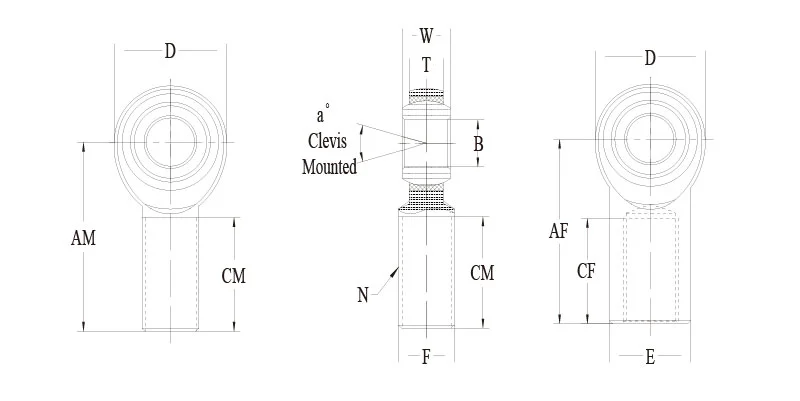

ALJM and ALJF Rod End Size Chart
| ALJM(T) ROD END | B | D | W | T | BALL | AM | N | CM | a° | STATIC | APPROX | |
| RIGHT | LEFT | DIA. | DIA. | WIDTH | WIDTH | DIA. | LENGTH | THREAD | LENGTH | MIS. | RADIAL | WEIGHT |
| HAND | HAND | +0.0025 | +0.010 | +0.005 | REF. | REF. | +0.015 | UNF | +0.062 | ANGLE | LOAD | (LBS) |
| PART NO. | PART NO. | -0.0005 | -0.010 | -0.005 | -0.015 | 3A | -0.031 | REF. | (LBS) | |||
| ALJMR3(T) | ALJML3(T) | 0.1900 | 0.625 | 0.312 | 0.250 | 0.437 | 1.250 | 10-32 | 0.750 | 13 | 1,360 | 0.022 |
| ALJMR4(T) | ALJML4(T) | 0.2500 | 0.750 | 0.375 | 0.281 | 0.500 | 1.562 | 1/4-28 | 1.000 | 16 | 2,465 | 0.034 |
| ALJMR5(T) | ALJML5(T) | 0.3125 | 0.875 | 0.437 | 0.344 | 0.625 | 1.875 | 5/16-24 | 1.250 | 14 | 2,850 | 0.050 |
| ALJMR6(T) | ALJML6(T) | 0.3750 | 1.000 | 0.500 | 0.406 | 0.719 | 1.938 | 3/8-24 | 1.250 | 12 | 4,208 | 0.078 |
| ALJMR7(T) | ALJML7(T) | 0.4375 | 1.125 | 0.562 | 0.437 | 0.812 | 2.125 | 7/16-20 | 1.375 | 14 | 4,534 | 0.091 |
| ALJMR8(T) | ALJML8(T) | 0.5000 | 1.312 | 0.625 | 0.500 | 0.937 | 2.438 | 1/2-20 | 1.500 | 12 | 7,698 | 0.140 |
| ALJMR8H(T) | ALJML8H(T) | 0.5000 | 1.500 | 0.625 | 0.500 | 0.937 | 2.625 | 1/2-20 | 1.562 | 12 | 10,150 | 0.140 |
| ALJMR8-6(T) | ALJML8-6(T) | 0.3750 | 1.312 | 0.625 | 0.500 | 0.937 | 2.438 | 1/2-20 | 1.500 | 12 | 7,698 | 0.140 |
| ALJMR10(T) | ALJML10(T) | 0.6250 | 1.500 | 0.750 | 0.562 | 1.125 | 2.625 | 5/8-18 | 1.625 | 16 | 8,516 | 0.240 |
| ALJMR10H(T) | ALJML10H(T) | 0.6250 | 1.750 | 0.750 | 0.562 | 1.125 | 2.625 | 5/8-18 | 1.625 | 16 | 16,200 | 0.268 |
| ALJMR12(T) | ALJML12(T) | 0.7500 | 1.750 | 0.875 | 0.687 | 1.312 | 2.875 | 3/4-16 | 1.750 | 14 | 13,319 | 0.300 |
| ALJMR12H(T) | ALJML12H(T) | 0.7500 | 2.000 | 0.875 | 0.687 | 1.312 | 3.000 | 3/4-16 | 1.750 | 14 | 23,390 | 0.300 |
| ALJF(T) ROD END | B | D | W | T | BALL | AF | N | CF | a° | STATIC | APPROX | |
| ALJFR3(T) | ALJFL3(T) | 0.1900 | 0.625 | 0.312 | 0.250 | 0.437 | 1.062 | 10-32 | 0.500 | 13 | 1,360 | 0.022 |
| ALJFR4(T) | ALJFL4(T) | 0.2500 | 0.750 | 0.375 | 0.281 | 0.500 | 1.312 | 1/4-28 | 0.687 | 16 | 2,592 | 0.034 |
| ALJFR5(T) | ALJFL5(T) | 0.3125 | 0.875 | 0.437 | 0.344 | 0.625 | 1.375 | 5/16-24 | 0.687 | 14 | 2,890 | 0.050 |
| ALJFR6(T) | ALJFL6(T) | 0.3750 | 1.000 | 0.500 | 0.406 | 0.719 | 1.625 | 3/8-24 | 0.812 | 12 | 3,952 | 0.088 |
| ALJFR7(T) | ALJFL7(T) | 0.4375 | 1.125 | 0.562 | 0.437 | 0.812 | 1.812 | 7/16-20 | 0.937 | 14 | 4,534 | 0.135 |
| ALJFR8(T) | ALJFL8(T) | 0.5000 | 1.312 | 0.625 | 0.500 | 0.937 | 2.125 | 1/2-20 | 1.062 | 12 | 7,006 | 0.186 |
| ALJFR10(T) | ALJFL10(T) | 0.6250 | 1.500 | 0.750 | 0.562 | 1.125 | 2.500 | 5/8-18 | 1.375 | 16 | 8,516 | 0.278 |
| ALJFR12(T) | ALJFL12(T) | 0.7500 | 1.750 | 0.875 | 0.687 | 1.312 | 2.875 | 3/4-16 | 1.562 | 14 | 13,319 | 0.414 |
