ROD END / HEIM JOINT

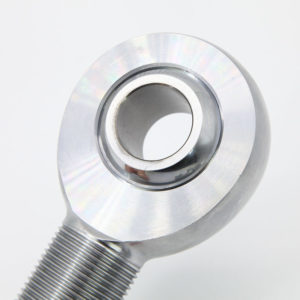

XM XF Rod Ends

✓ ISO 9001 Certified
✓ SGS Verified
✓ 26+ Years Factory
✓ OEM / ODM Ready
  • Product Name: XM XF Rod Ends
  • Thread: Both Right Hand & Left Hand; Male & Female
  • Packaging Details: Individual Plastic Bag, with Thread Cover, and into Cartons.
  • Brand Name: SYZ Machine
  • Origin: Made-in-China
Get a Quote →
⚡ Typically responds within 24 hours
MOQ:50 pcs / model
Lead Time:7–15 days
Sample:Free (excl. freight)
Payment:T/T · PayPal · L/C
Overview

XM XF Rod Ends Overview

BALLRACEBODY
52100 BEARING STEELINJECTION4130 CHROMOLY STEEL
PRECISION GROUNDMOLDEDHEAT TREATED
HEAT TREATEDREINFORCEDHARD CHROME PLATED
HARD CHROME PLATEDNYLON WITH PTFE

xm xf rod end

XM XF Rod Ends Size Chart

XM ROD ENDBDWTBALLAMNCMa°STATICAPPROX
RIGHTLEFTDIA.DIA.WIDTHWIDTHDIA.LENGTHTHREADLENGTHMIS.RADIALWEIGHT
HANDHAND0.00250.010.005REF.REF.0.015UNF0.062ANGLELOAD(LBS)
PART NO.PART NO.-0.0005-0.01-0.005-0.0153A-0.031REF.(LBS)
XMR3XML30.19000.6250.3120.2500.4371.25010-320.750132,8510.03
XMR3-4XML3-40.19000.7500.3120.2500.4371.5621/4-281.000105,2600.04
XMR4XML40.25000.7500.3750.2810.5001.5621/4-281.000165,2600.04
XMR4-5XML4-50.25000.8750.3750.2810.5001.8755/16-241.250138,4520.07
XMR5XML50.31250.8750.4370.3440.6251.8755/16-241.250147,6390.07
XMR5-6XML5-60.31251.0000.4370.3440.6251.9383/8-241.2501212,9780.11
XMR6XML60.37251.0000.5000.4060.7191.9383/8-241.250129,5440.11
XMR6-7XML6-70.37251.1250.5000.4060.7192.1257/16-201.3751017,5080.15
XMR7XML70.43751.1250.5620.4370.8122.1257/16-201.3751410,2850.15
XMR7-8XML7-80.43751.3120.5620.4370.8122.4381/2-201.5001223,4520.24
XMR8XML80.50001.3120.6250.5000.9372.4381/2-201.5001216,2380.24
XMR8-10XML8-100.50001.5000.6250.5000.9372.6255/8-181.6251031,3900.36
XMR8-12XML8-120.50001.7500.6250.5621.1252.8753/4-161.7501640,5720.42
XMR10XML100.62501.5000.7500.5621.1252.6255/8-181.6251617,9550.36
XMR10-12XML10-120.62501.7500.7500.5621.1252.8753/4-161.7501340,5720.57
XMR12XML120.75001.7500.8750.6871.3122.8753/4-161.7501428,0810.57
XMR12-14XML12-140.75002.0000.8750.6871.3123.3757/8-141.8751255,6920.88
XMR14XML140.87502.0000.8750.7651.3753.3757/8-142.000745,0510.88
XMR16XML161.00002.7501.3751.0151.8754.1251 1/4-122.1251776,2002.41
XMR16-1XML16-11.00002.7501.3751.0151.8754.1251-142.1251776,2002.13
XMR16-2XML16-21.00002.7501.3751.0151.8754.1251-122.1251776,2002.13
XF ROD ENDBDWTBALLAFNCFa°STATICAPPROX
XFR3XFL30.19000.6250.3120.2500.4371.06210-320.562133,7330.04
XFR4XFL40.25000.7500.3750.2810.5001.3121/4-280.750166,1900.06
XFR5XFL50.31250.8750.4370.3440.6251.3755/16-240.750147,6390.09
XFR6XFL60.37501.0000.5000.4060.7191.6253/8-240.937129,5440.14
XFR7XFL70.43751.1250.5620.4370.8121.8127/16-201.0621410,2850.19
XFR8XFL80.50001.3120.6250.5000.9372.1251/2-201.1871215,3360.31
XFR10XFL100.62501.5000.7500.5621.1252.5005/8-181.5001617,9550.45
XFR12XFL120.75001.7500.8750.6871.3122.8753/4-161.7501428,0810.69
XFR16XFL161.00002.7501.3751.0151.8754.1251 1/4-122.1251776,2002.11



Hot Selling Products

Main Products ROD ENDSMain Products 4 BAR ROD ENDSMain Products REBUILDABLE JOINTSMain Products ROD END KITS
Main Products HIGH MISALIGNMENT SPACERSMain Products TUBE ADAPTERSMain Products BALL JOINTSMain Products CLEVIS AND YOKE
Main Products LINKAGE ADJUSTERSMain Products SPHERICAL BALLSMain Products JAM NUTSMain Products TUBE CLAMP AND COUPLERS

Main Products COILOVER SLEEVE KITSMain Products SWAY BAR LINKSMain Products RACK ENDSMain Products RADIUS ROD

Main Products TUBESMain Products DOM/CHROMOLY TUBING



Quality Control

Every Unit Inspected Before Shipment

🔩

Raw Material Inspection

Material certifications verified before machining and assembly begin.

🔍

Dimensional Check

Critical dimensions are checked against drawing or sample requirements.

🔬

Surface Inspection

Visual inspection confirms finish quality, burr removal, and assembly cleanliness.

📋

Batch Documentation

Inspection reports and production traceability can be provided on request.

Applications

Where Rod End / Heim Joint Products Are Used

Steering and Suspension Linkages

Linkage rods and Heim-joint assemblies provide adjustable, serviceable connections for steering, suspension, and chassis systems. Match the joint type, thread, spacers, and alignment to the travel of the mechanism.

Motorsport and Off-Road Fabrication

These components are widely used in custom vehicle builds where geometry, length adjustment, and replaceable joints are important. Check shock loading, misalignment, fastener orientation, and maintenance access.

Industrial and Agricultural Controls

Rod-end linkages can connect levers, actuators, and control arms in agricultural and industrial equipment. Select material, race, sealing, and surface treatment for the expected contamination and oscillation.
