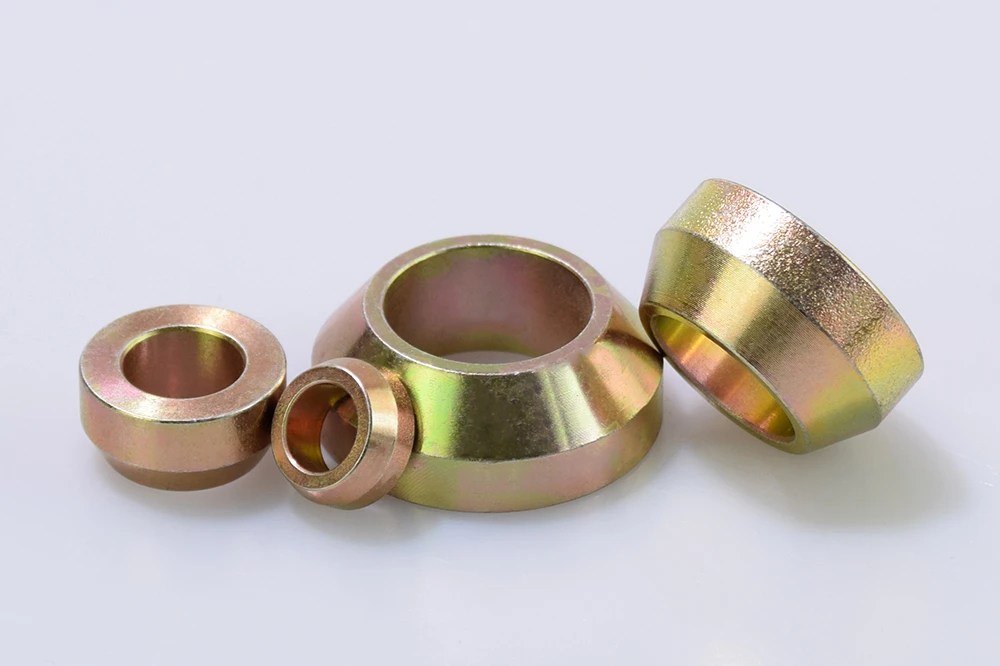

SCNS / CNS Series
Cone Spacers for Rod Ends & Bearings
Stainless or Zinc Plated Carbon Steel · Cone Spacer Geometry · Width & Angle Control
6
Available Sizes
2
Hero Views
Full Spec Range
Search by spec.
Technical Spec.
- Material: SCNS versions use stainless steel while CNS versions use zinc plated carbon steel.
- Function: Cone spacers adapt rod end and spherical bearing geometry by controlling spacing and articulation angle.
- Selection: Start with B and C, then confirm A, D, E, and cone angle for final assembly fitment.
- Packaging: Spacer cone profile affects installed stack-up, articulation, and bracket clearance around the joint.
Notes
- Applications: Used with rod ends and spherical bearings where compact width and controlled articulation are required.
- Material Choice: Stainless options are useful for corrosion-sensitive environments, while plated carbon steel supports general industrial hardware.
- Customization: SYZ can review custom dimensions and alternate material requests for OEM programs.
